LED MINE BAR 750mm

LED MINE BAR 750mm – Heavy‑Duty Mining & Industrial Safety Light Bar
Dominate visibility, safety and compliance across mining fleets, heavy vehicles, 4×4 utility trucks, service utes and industrial equipment with the premium LED Mine Bar 750mm – a robust, ADR‑approved, IP67 rated warning light bar engineered to thrive in extreme onsite conditions. Featuring a powerful SAE Class I LED beacon, 18×3W high‑output LEDs, rear stop, tail, indicator and tonal 97dB reverse alarm for maximum audible and visual warning, this 750 mm low‑profile aluminium LED mine bar delivers superior illumination, long‑lasting performance and low current draw on 12–24 V systems. Built to withstand vibration, dust, moisture and round‑the‑clock work, it’s the go‑to LED light bar for mine site safety, vehicle hazard warning, ADR compliance, industrial applications, fleet visibility and off‑road safety lighting. Quick to install and engineered for reliability, this LED mine bar outperforms generic light bars and reversing alarm combos in durability, performance and safety compliance.

All minebars equipped with rear facing ADR Approved LED combination lamps-Stop, Tail, Indicator & Reverse.

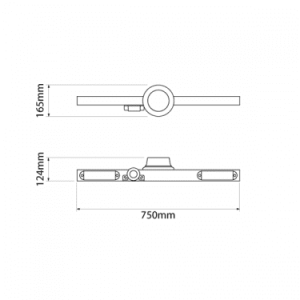

Mounting and Dimensions:
Fixed Mount: 750mm (L) X 165mm (D) x 124mm (H)

SAE Class I LED Beacon (460-1030)
18 x 3 watt LEDs
Preset “Quad Flash” flash pattern
Environmentally sealed – IP67

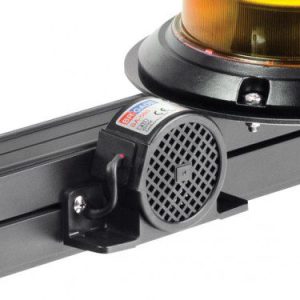

Tonal Reverse Alarm
97dB
Solid state electronics sealed in epoxy resin – IP68

Crossbar
Black anodised aluminium
