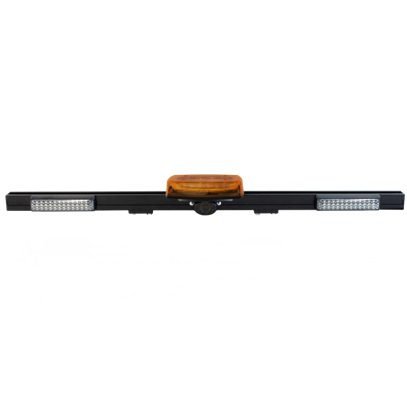

LED MINE BAR 1230mm

LED MINE BAR 1230mm – Heavy‑Duty Mining & Industrial LED Lightbar with Beacon, Reverse Alarm, Stop/Tail/Indicator Signals, IP Rated Protection
Built for Australia’s toughest mining sites and industrial vehicles, the LED Mine Bar 1230mm delivers maximum high‑visibility safety lighting, ADR‑compliant signalling, and rugged all‑weather performance in harsh environments. Featuring a fixed‑mount 1230mm LED mine bar with rear‑facing stop, tail, indicator & reverse lamps, an integrated SAE Class I LED mini lightbar with “Quad Burst” flash pattern, and a 97dB tonal reverse alarm, this mine spec light bar provides critical warning and compliance for underground, open‑cut and heavy machinery applications. Constructed on a black anodised aluminium crossbar with IP65/IP68 sealed electronics, it’s engineered for long life, severe dust and water resistance, and reliable performance on 12V‑24V systems. Ideal for mining vehicles, haul trucks, service rigs, utes, 4×4 work fleets, safety‑critical equipment, and industrial lightbar installations where safety, visibility and workplace compliance are non‑negotiable.

All mine bars equipped with rear facing LED combination lamps-Stop, Tail, Indicator & Reverse.

Mounting and Dimensions:
Fixed Mount: 1230mm (L) X 194mmmm (D) x 110mm (H)

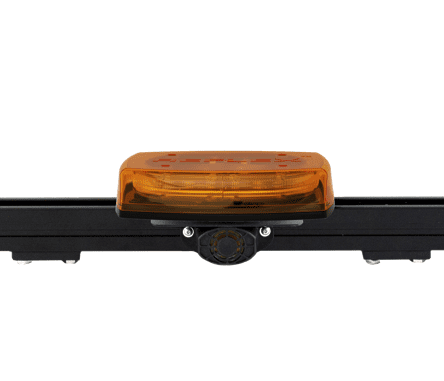

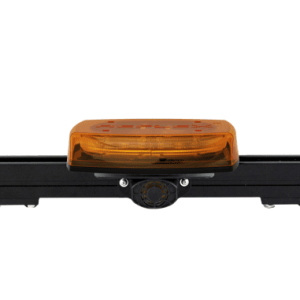

SAE Class I LED Mini Lightbar
4x modules containing 12x LEDs each
“Quad Burst” flash pattern
Environmentally sealed – IP65

Tonal Reverse Alarm
97dB
Epoxy sealed – IP68

Crossbar
Black anodised aluminium
