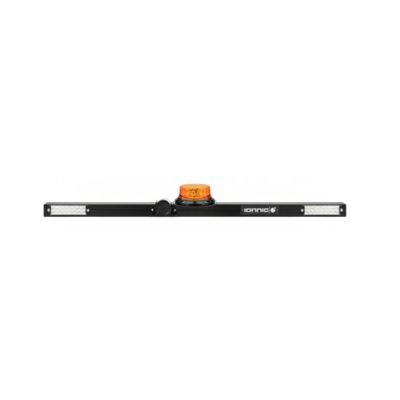

IONNIC LED MINE BAR 1275mm

Ionnic Minebar 1275mm – Premium 1275mm IONNIC LED Mine Bar for Heavy Vehicles & Mining
Dominate every jobsite and roadside safety requirement with the 1275mm IONNIC LED Mine Bar — Australia’s rugged, ADR‑approved multi‑function LED light bar engineered for mining, construction, 4×4, emergency response, utility and heavy‑duty vehicles. Featuring high‑output IONNIC Class I LED beacons, rear‑facing ADR‑approved stop/tail/indicator and reverse signal lamps, powerful IP67 sealed LED worklights, and a robust 92dB reverse squawker alarm, this 12‑24V minebar delivers maximum visibility in the harshest conditions. Built with extruded anodised alloy for ultimate durability and corrosion resistance, it’s perfect for mining vehicle light bars, heavy vehicle warning lights, LED beacon bars, ADR compliant LED bars and safety lighting systems. Designed for easy installation and road‑legal compliance, the IONNIC 1275mm LED Mine Bar sets the standard in mining safety lighting, LED mine lighting and vehicle roof lightbars.

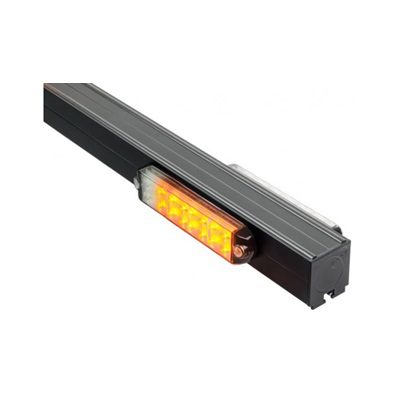

All mining bars equipped with rear facing ADR Approved LED combination lamps-Stop, Tail, Indicator & Reverse.

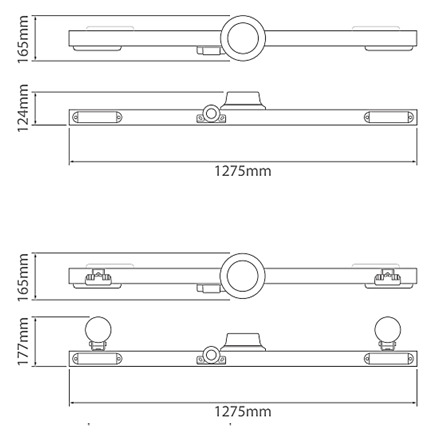

Mounting and Dimensions:
Excluding Worklights: 1275mm (L) X 165mm (D) x 124mm (H)

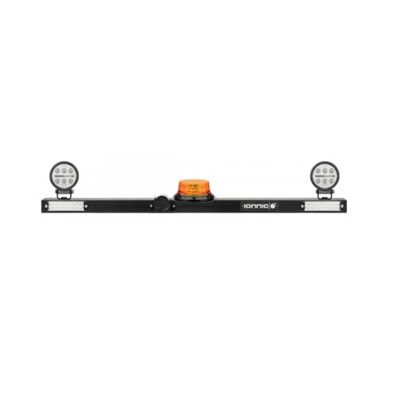

Including Worklights: 1275mm (L) X 165mm (D) x 177mm (H)

SAE Class I LED Beacon (460-1030)
18 x 3 watt LEDs
Preset “Quad Flash” flash pattern
Environmentally sealed – IP67

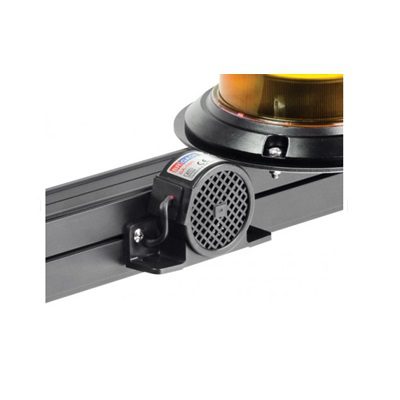

Reverse Squawker (600-BBS092)
Big Sound, Small Noise ………. shh…shh…shh
92dB
Solid state electronics sealed in epoxy resin – IP68

LED Worklights
Lumen output – 1000lm
Colour temperature – 5000K
Environmentally sealed cast alloy body – IP68
122mm (H) X 93mm (W) X 41mm (D)

Crossbar
Black anodised aluminium
