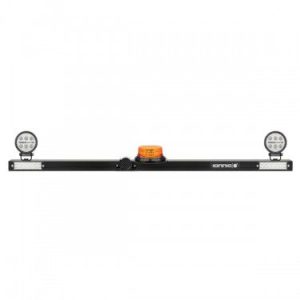

LED MINE BAR 1500mm

The LED Mine Bar 1500mm is Australia’s leading heavy‑duty mining vehicle light bar engineered for maximum safety, compliance and visibility in tough mining, construction and industrial environments. Built with robust black anodised aluminium, this full‑length 1500 mm LED mine light bar features rear‑facing ADR‑approved LED combination lamps (Stop, Tail, Indicator & Reverse), a powerful SAE Class I LED beacon with quad flash, durable IP67/IP68 weatherproof sealing, high‑output 1000 lm LED worklights, and a loud 97 dB tonal reverse alarm for unrivalled site awareness and hazard prevention. Designed for 12‑24 V multi‑voltage systems and engineered for rugged mine site compliance, vehicle safety lighting, off‑road durability and energy‑efficient performance, it dramatically improves crew safety and reduces downtime on fleet vehicles, utes, trucks, heavy machinery and equipment — the ideal choice for mining LED bars, industrial warning lights, ADR compliant lighting and high‑intensity LED beacon solutions in Australia.

Each mine bar is equipped with rear facing ADR Approved LED combination lamps-
Stop, Tail, Indicator & Reverse.

Mounting and Dimensions:
Excluding Worklights: 1500mm (L) X 165mm (D) x 124mm (H)
Including Worklights: 1500mm (L) X 165mm (D) x 177mm (H)

SAE Class I LED Beacon (460-1030)
18 x 3 watt LEDs
Preset “Quad Flash” flash pattern
Environmentally sealed – IP67

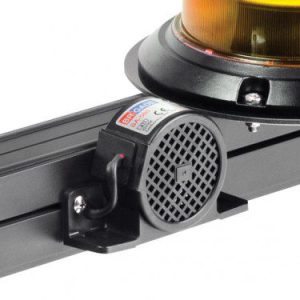

Tonal Reverse Alarm (600-BS560)
97dB
Solid state electronics sealed in epoxy resin – IP68

LED Worklights
Lumen output – 1000lm
Colour temperature – 5000K
Environmentally sealed cast alloy body – IP68
122mm (H) X 93mm (W) X 41mm (D)

Crossbar
Black anodised aluminium
