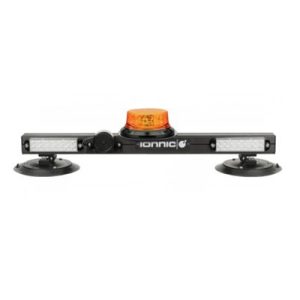

LED MINE BAR 750mm

All minebars equipped with rear facing ADR Approved LED combination lamps-
Stop, Tail, Indicator & Reverse.

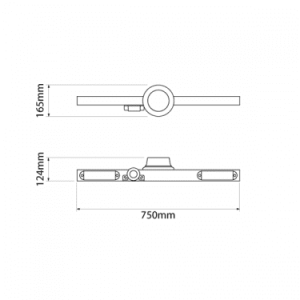

Mounting and Dimensions:
Fixed Mount: 750mm (L) X 165mm (D) x 124mm (H)

SAE Class I LED Beacon (460-1030)
18 x 3 watt LEDs
Preset “Quad Flash” flash pattern
Environmentally sealed – IP67

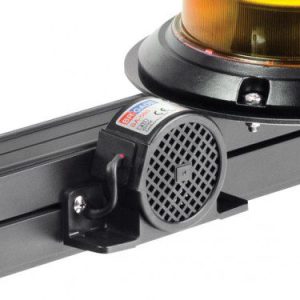

Tonal Reverse Alarm
97dB
Solid state electronics sealed in epoxy resin – IP68

Crossbar
Black anodised aluminium
