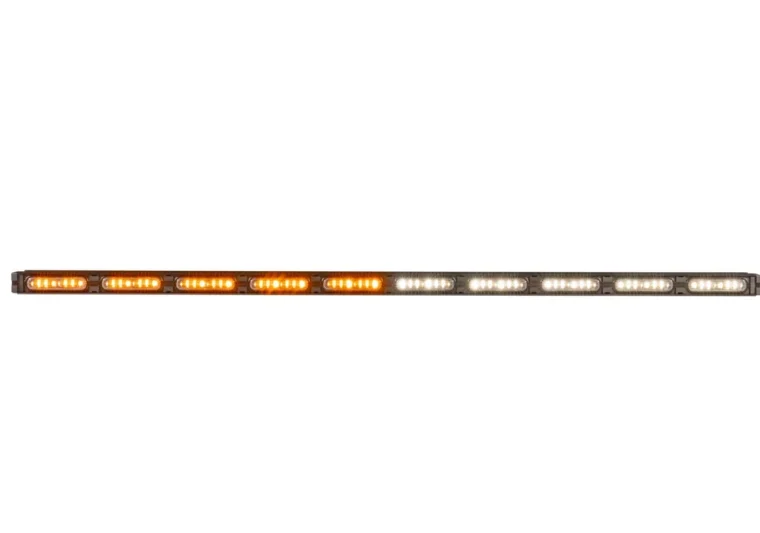

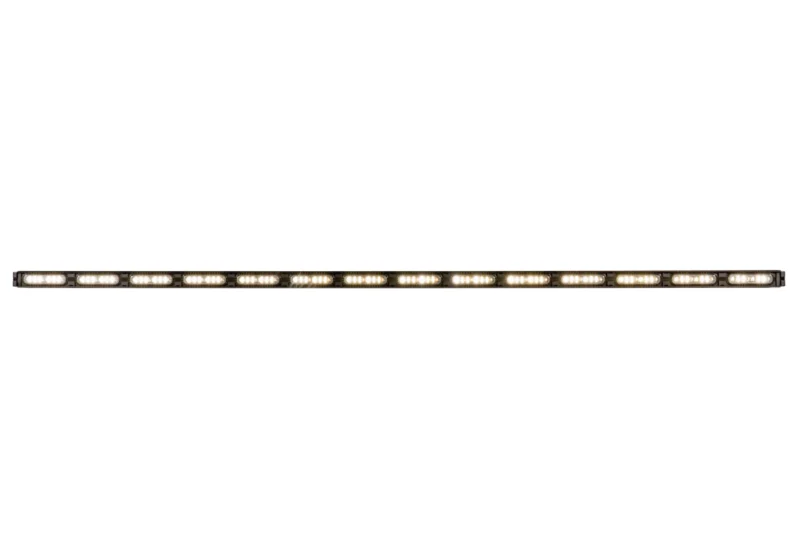

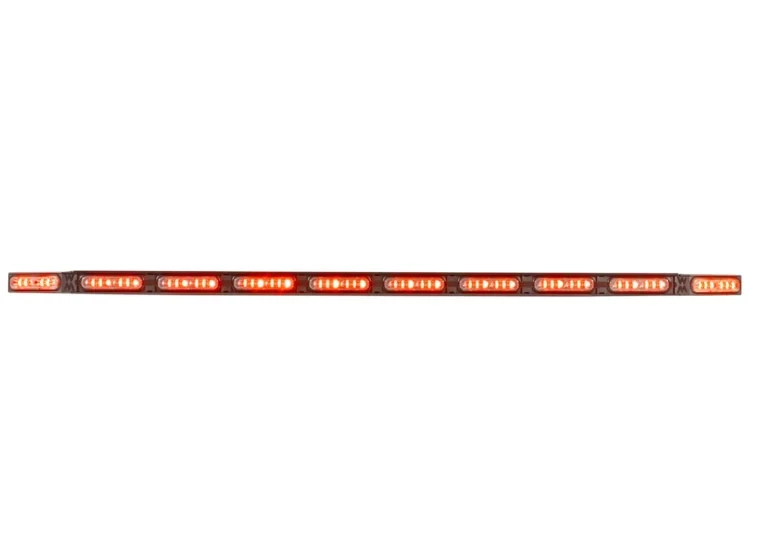

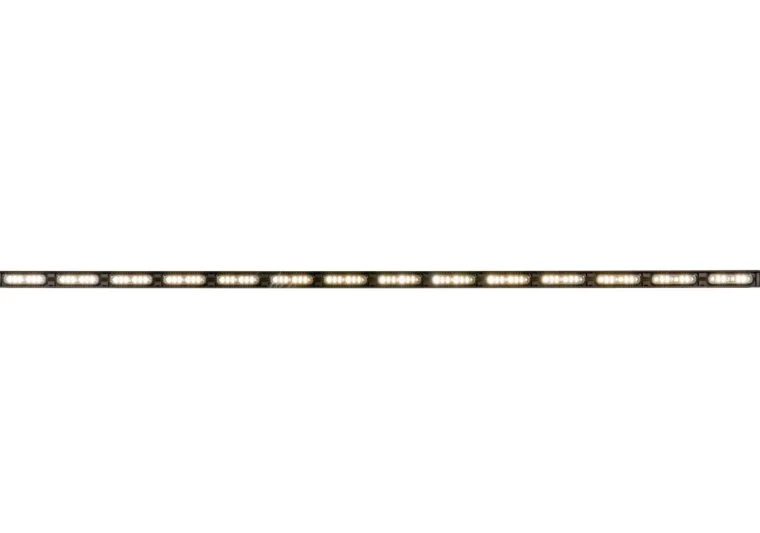

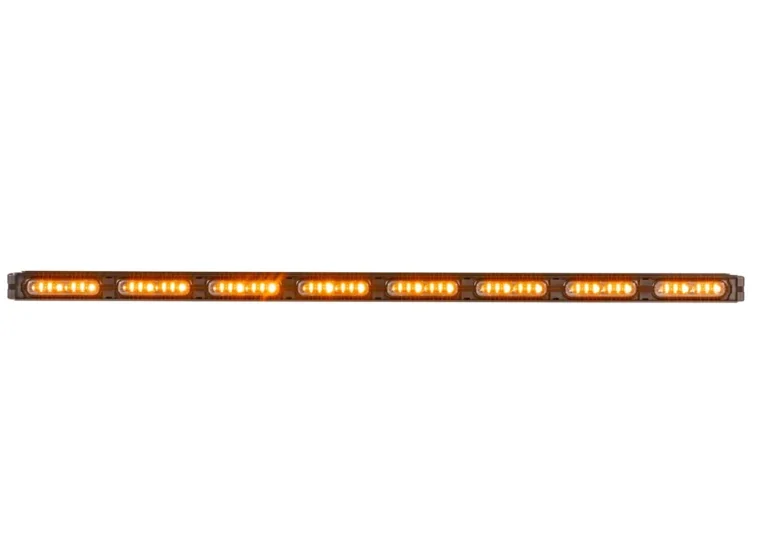

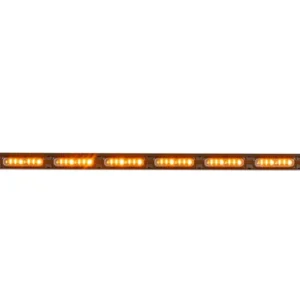

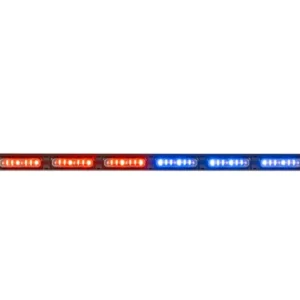

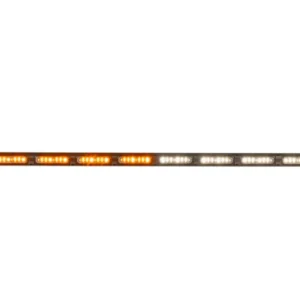

WHELEN WECANX 2250 WITH TRAFFIC ADVISOR

SKU 562-WX2240

Interested in this product?

Request a Quote

Additional Information

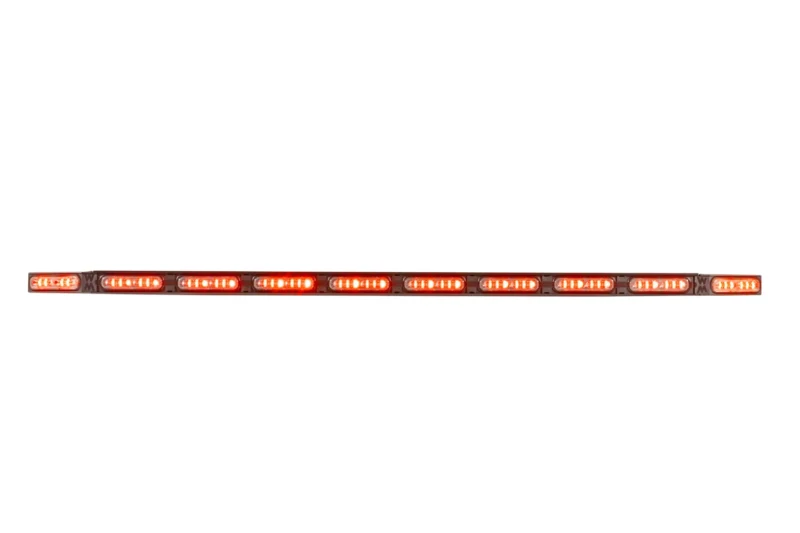

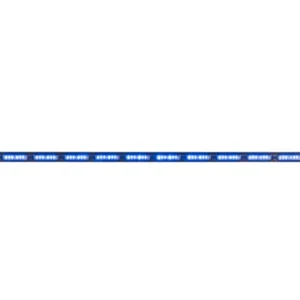

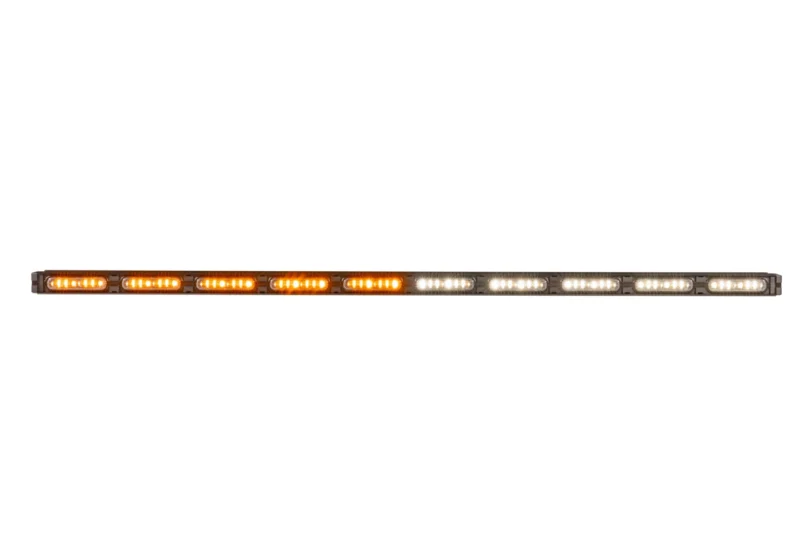

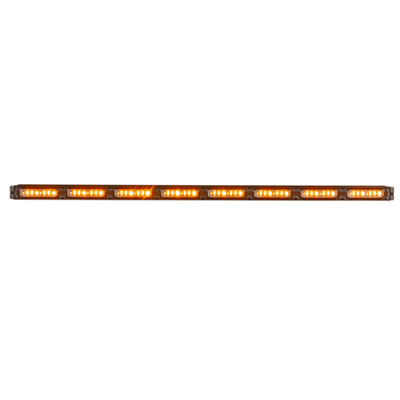

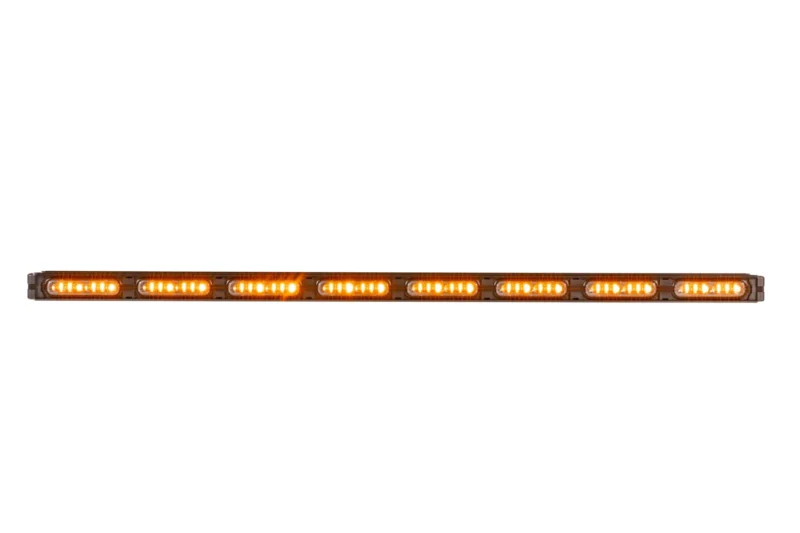

The Whelen WeCanX® 2250 with Traffic Advisor™ is the ultimate LED warning lightbar and traffic management system for emergency, police, fire, ambulance, tow trucks, construction, utilities, and commercial fleet vehicles. This cutting-edge light array combines Whelen T-Series™ Super-LED lightheads with advanced WeCanX® programmability and WeCad™ configurability, delivering customizable flash patterns, directional arrow signals, variable intensity, and SAE Class 1 compliance. Its streamlined interface, rugged IP67 slim design, moisture-sealed E-Block™ tech, and hard-coated lenses ensure maximum visibility, durability, and low maintenance in any environment. Perfect for road safety, traffic control, MUTCD-compliant directional advisories, and fleet vehicle warning systems, the 2250 boosts fleet efficiency, emergency response, and vehicle safety. Upgrade your operations with the most reliable, programmable, and versatile traffic advisor lightbar available, backed by Whelen’s industry-leading performance and long-lasting durability.

Features:

Customizable Design: Tailor your lightbar to your exact needs using WeCad lightbar designer
Slim Design: 50% slimmer than the 4500 Series

Contact AWS sales team for car specific lights, accessories and installation prices

Specifications:

Please note: Not all specifications will apply to every model. Consult your sales representative to confirm specs.

Optics	T-Series™ lightheads: 6-Light (30″), 8-Light (40″), 10-Light (50″), 12-Light (60″), 14-Light (70″), 16-Light (80″)
Technology	Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety E Block™: Patented watertight seal prevents moisture from entering the lighthead
Flash Patterns	Models are programmable with unlimited flash patterns, via Command®
Control	WeCanX®

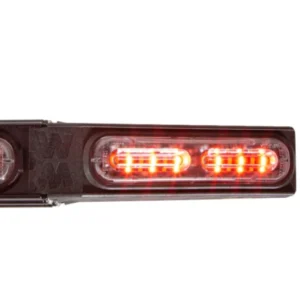

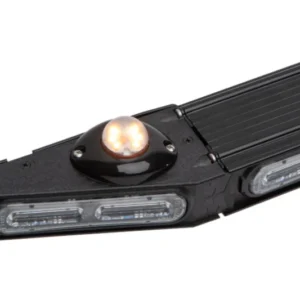

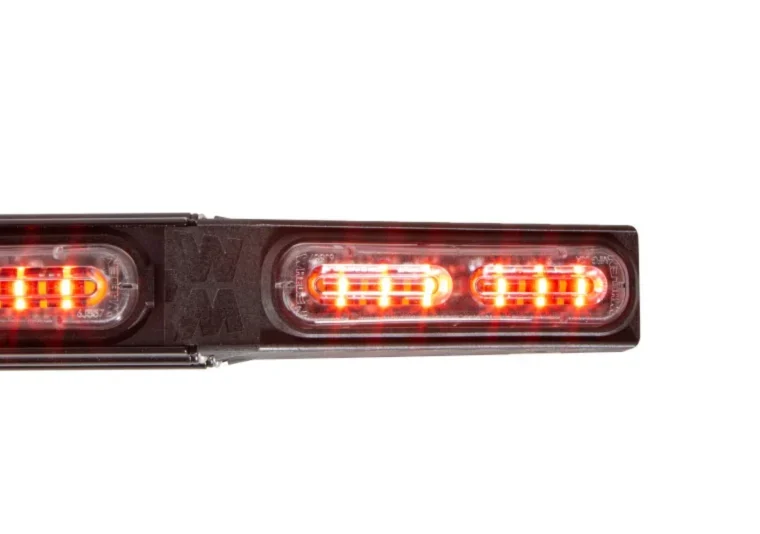

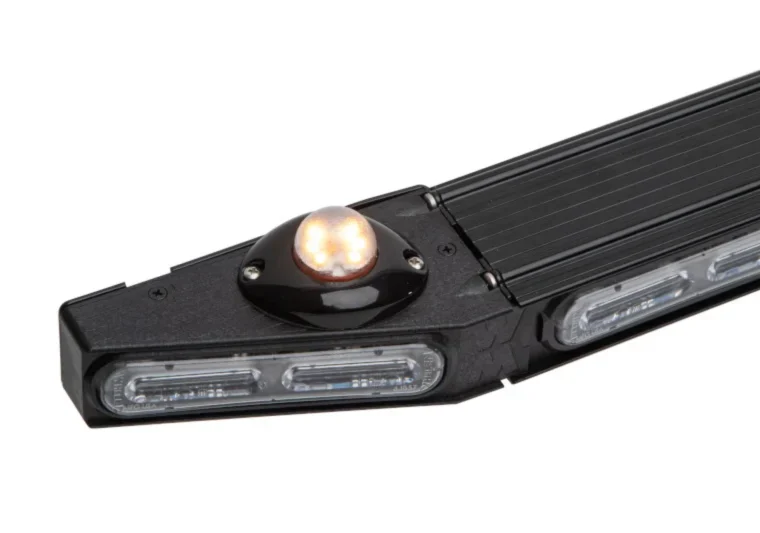

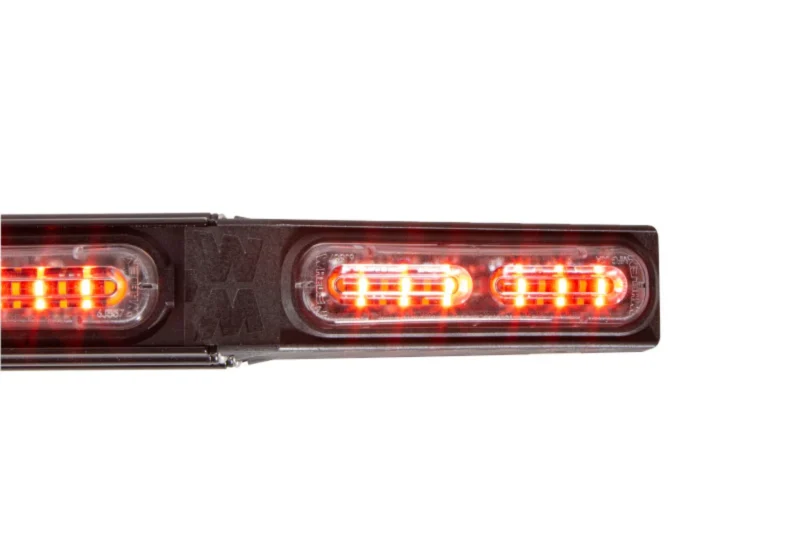

Customization	Lengths: Multiple lengths available End Caps: Angled and/or flat options available Cable Lengths: 25′, 35′, 45′, and 55′ options available Optional Additions: Aerial recognition (Vertex™ lighthead)
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals E Block™: Patented watertight seal prevents moisture from entering the lighthead
Mounting	Slide Bolt (Flush Mount)
Included Cables & Hardware	15′ (4.57 m) cable
Certifications	SAE Standards SAE Class 1 Environmental IP67 Regulatory Compliance R10 R148
Warranty	10-year Please see our warranty statement for more information here.
Voltage	10-30 VDC
Amps	12.8 VDC: 0.62 (peak), 0.25 (avg.) per lighthead 25.6 VDC: 0.32 (peak), 0.13 (avg.) per lighthead
Size	Angled End Cap Lengths Available: 29.76″ (75.59 cm), 39.87″ (101.27 cm), 49.97″ (126.92 cm), 60.09″ (152.63 cm), 70.19″ (178.28 cm), 80.29″ (203.94 cm) Flat End Cap Lengths Available: 21.87″ (55.55 cm), 31.98″ (81.23 cm), 42.08″ (160.88 cm), 52.19″ (132.56 cm), 62.29″ (158.22 cm), 72.40″ (183.90 cm), 82.50″ (209.55 cm) Height: 1.66″ (4.22 cm) without Vertex / 2.47″ (6.27 cm) with Vertex Width: 2.28″ (5.79 cm)
