AC7 B TYPE SINGLE SIDED ARROW BOARD

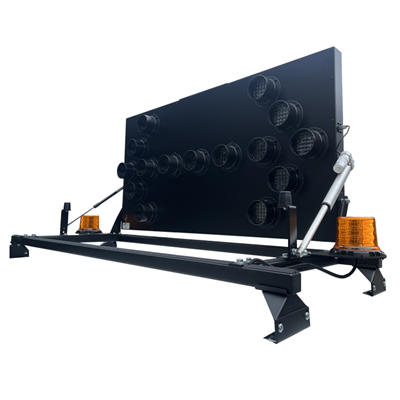

AC7 B Type Single Sided Arrow Board – Australian-Made LED Road Safety Solution.

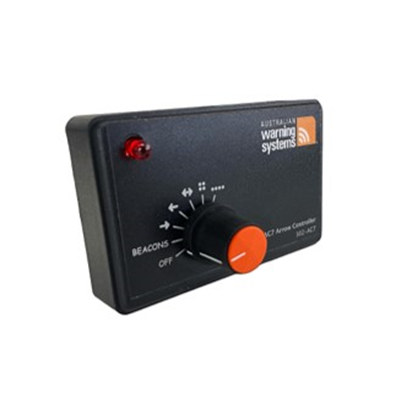

Introducing the new AC7 series AWS Arrowboard system, designed for maximum roadwork safety and compliance. Featuring the new and improved in-cab controller, this board triggers your beacons and actuator automatically, eliminating the need for in-cab toggles or switches and reducing installation time. The AS Series directional arrows are high-quality, full-featured, and designed and manufactured in Australia, perfect for government and contract companies requiring strict adherence to Australian Standards (AS4192). Powered by cost-effective LED lamps that maintain top-tier performance while reducing cost, the AC7 B Type Single Sided Arrow Board delivers unmatched visibility, durability, and reliability for all traffic management applications. Ideal for roadworks, maintenance crews, and fleet safety, this board comes with easy installation, in-cab control, and optional add-ons like LED work lights and symbolic signage.

Approvals:AS4192-2022

Dimensions:
1500mm (w) x 770mm (h) x 135mm (d)

Additional Information:
For use on highways and higher speed roadways

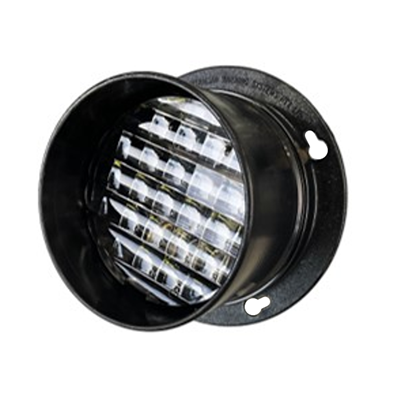

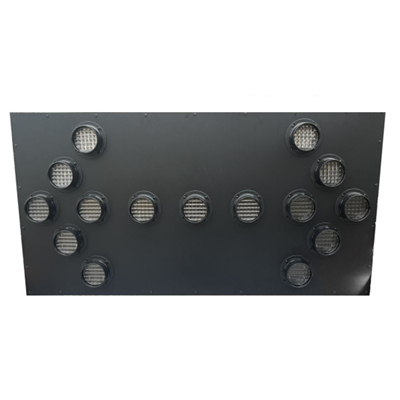

Single sided with 15 LED lamps
Dual voltage solid state circuitry
360º ABS lamp hoods
Power-coated aluminium construction
Rotary switch selection of left, right, double arrows. alternating corners and centre bar
Automatic dimming via inbuilt light sensor
Low voltage sensing
Failsafe mode protects against false signal output
8mt wiring harness supplied (other lengths available)
1-year warranty

Optional Add On’s:
Left and Right LED work lights
Symbolic workman sign to replaced front panel
Surface mount LED lights mounted to crossbar

For any consultation and/or quote enquiries, please phone 03 9796 5880 or email sales@warningsystems.com.au
