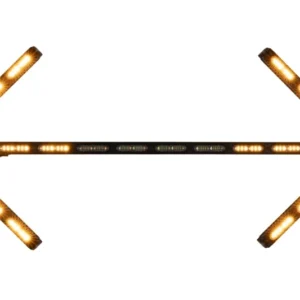

WHELEN WECANX 2250 TRAFFIC ADVISOR ARROW

SKU 562-WX2255A6

Additional Information

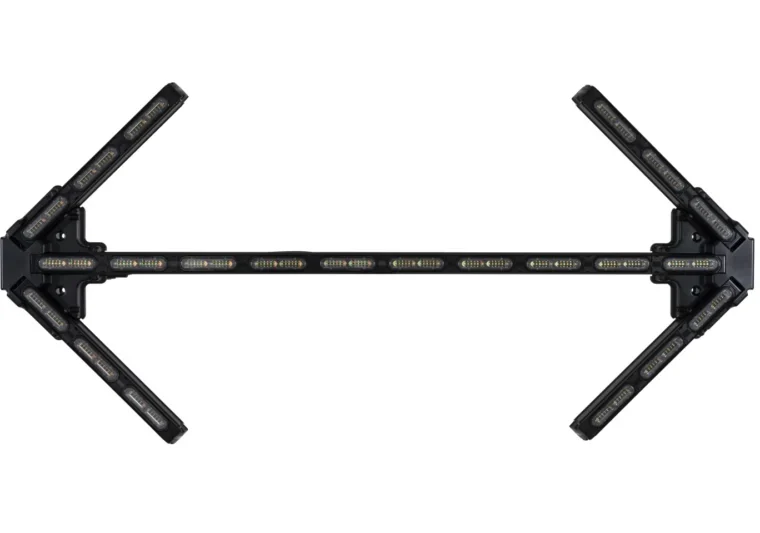

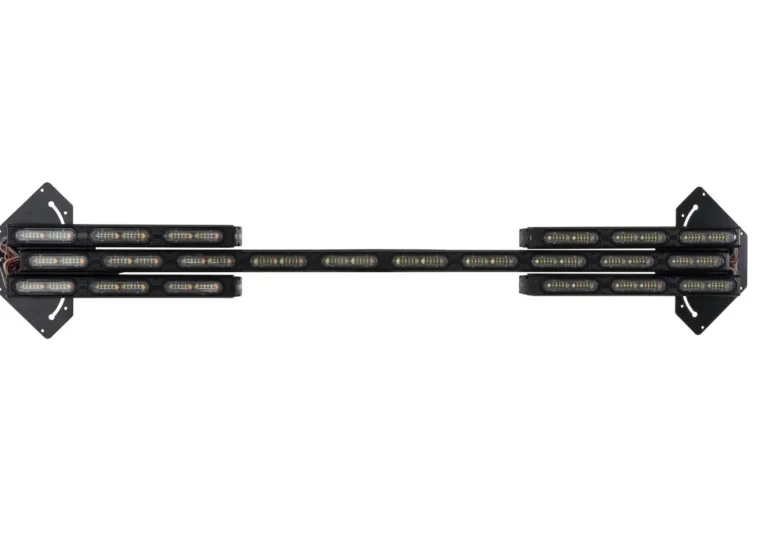

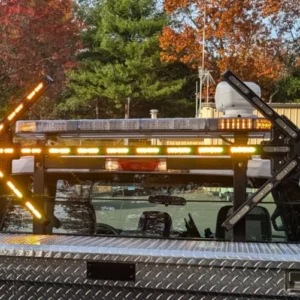

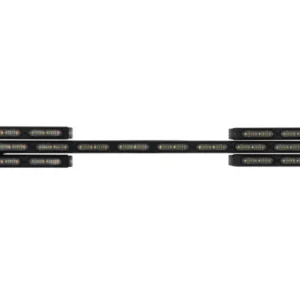

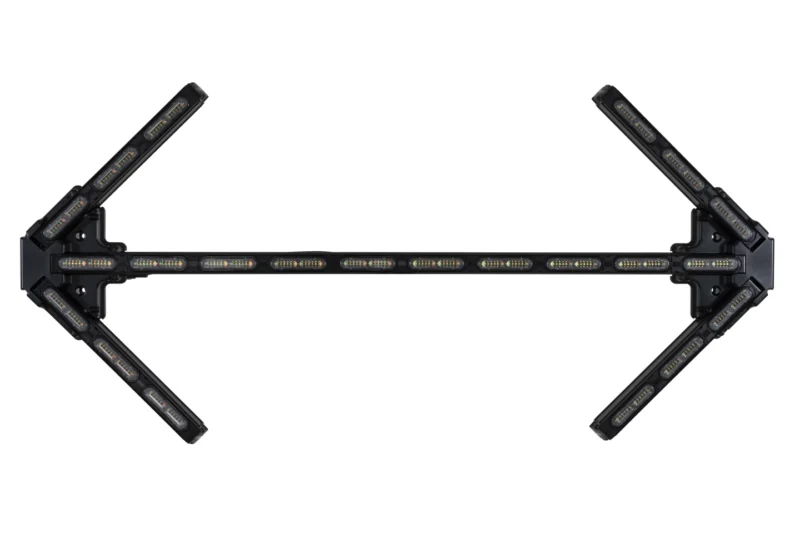

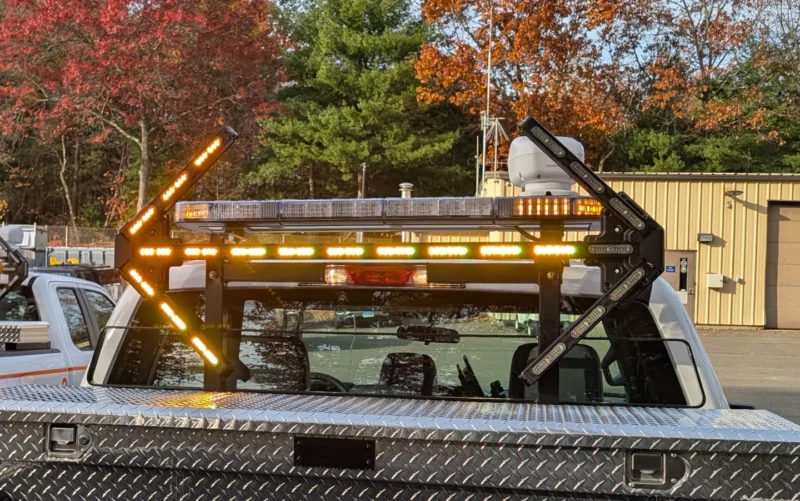

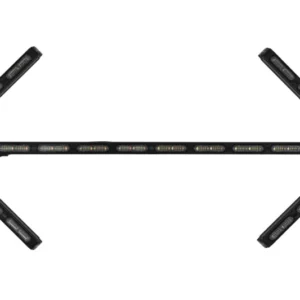

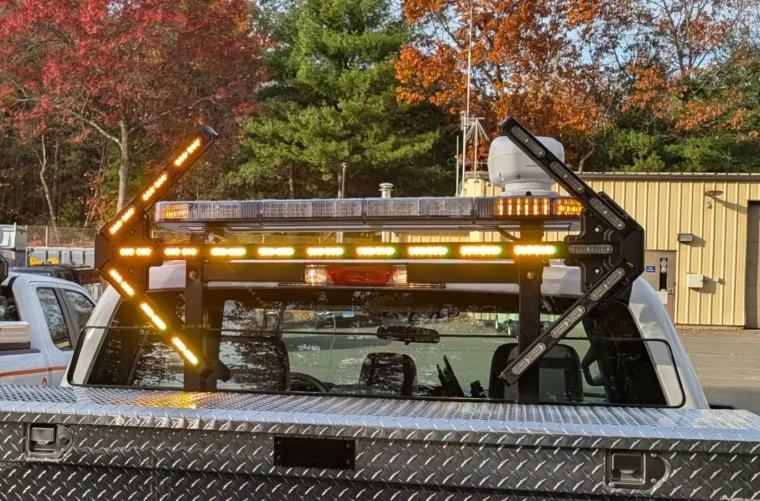

Take traffic control to the next level with the WeCanX® 2250 Traffic Advisor™ Arrow, a 55” light array designed for maximum visibility and directional guidance. Built on the trusted WeCanX 2250 platform, it combines all the advanced programmability and connectivity of the WeCanX 2250 with MUTCD-compliant arrow traffic patterns, providing better visibility and clear directional guidance. Perfect for DOT, utility, and construction fleets, as well as public works and roadside assistance vehicles that require reliable traffic direction and control.

Features:

MUTCD-Compliant: Designed to meet the rigorous standards of the Manual on Uniform Traffic Control Devices, ensuring uniformity and promoting highway safety and efficiency
DUO™ Functionality: Available exclusively in DUO for greater flexibility and control
Customizable Design: Tailor your lightbar to your exact needs using WeCad™ lightbar designer

Color Codes:

Replace * symbol in model number with letter indicating color desired: A = Amber, B = Blue, C = White, G = Green, R = Red

Replace # symbol in model number with letter indicating color combination desired: F = Amber/White, K = Red/Amber, M = Amber/Blue, P = Amber/Green

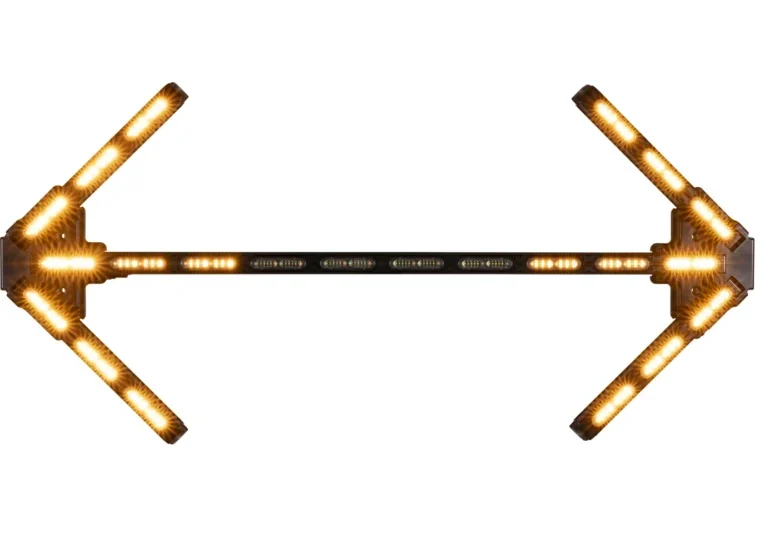

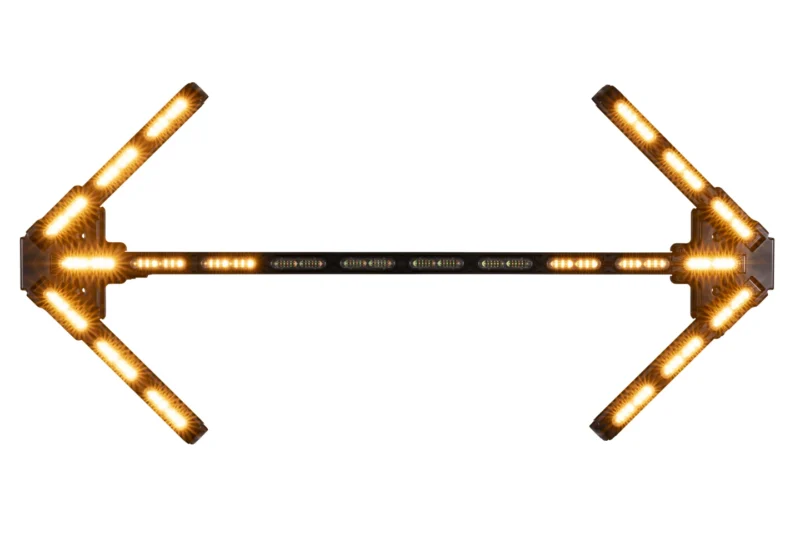

55” Long, 10 Lightheads with 6 Lightheads in Each Arrow (Lightheads Purchased Separately)

Specifications:

Please note: Not all specifications will apply to every model. Consult your sales representative to confirm specs.

Optics	T-Series™ lightheads
Technology	Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety E Block™: Patented watertight seal prevents moisture from entering the lighthead
Flash Patterns	Models are programmable with unlimited flash patterns, via Command®
Control	WeCanX®
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals E Block™: Patented watertight seal prevents moisture from entering the lighthead

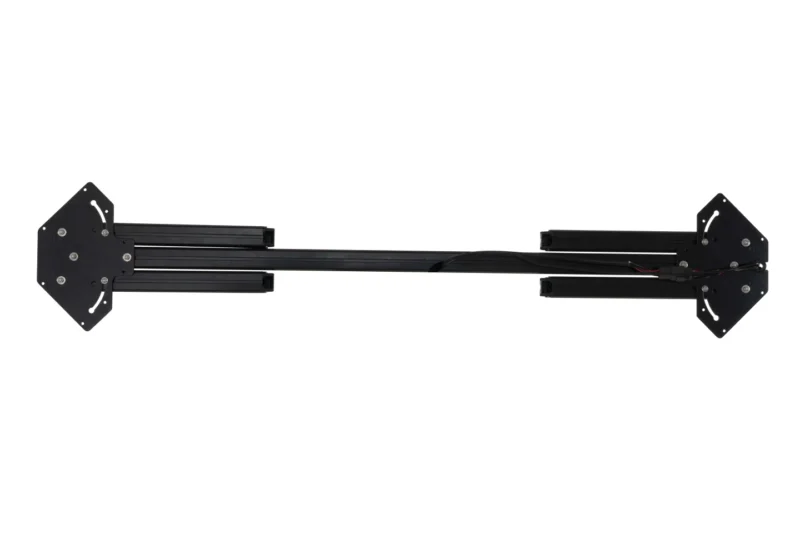

Mounting	Slide Bolt (Flush Mount)
Included Cables & Hardware	15′ (4.57 m) cable
Certification	SAE Standards SAE Class 1 Environmental IP67 Rated MUTCD-compliant
Warranty	10-year
Voltage	10-30 VDC
Amps	0.62 (peak), 0.25 (avg.) per lighthead @ 12.8 VDC 0.32 (peak), 0.13 (avg.) per lighthead @ 25.6 VDC

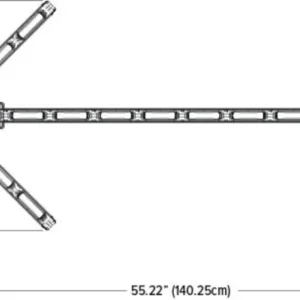

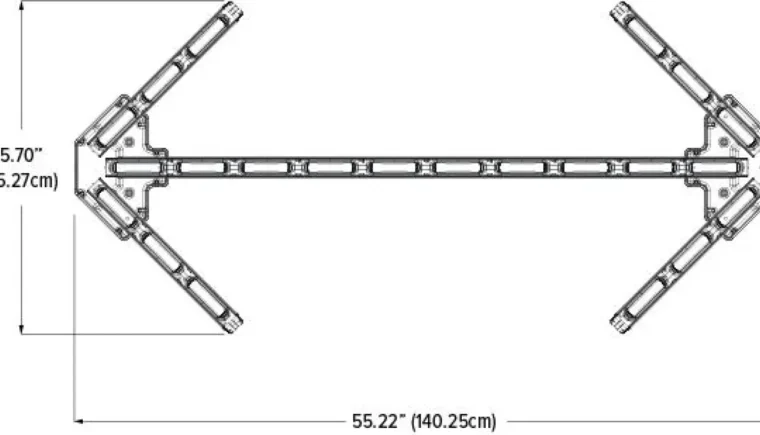

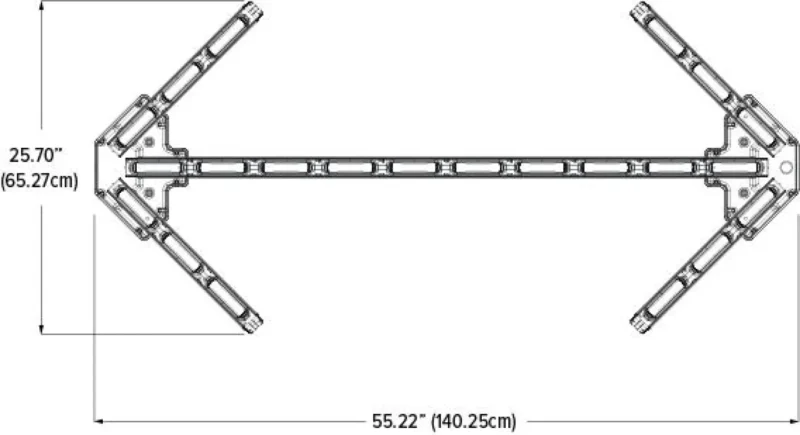

Size	55.22” (140.25cm) L x 25.70” (65.27cm) H x 2.25” (5.72cm) W
