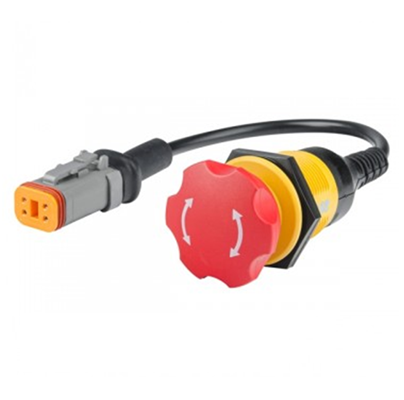

KISSLING E-STOP – LATCHING

Kissling e‑Stop ‑ Latching is a rugged, high‑performance industrial emergency stop switch built for maximum reliability in safety‑critical systems. Designed with a sealing rating up to IP67/IP6K9K, this panel‑mount switch resists dust, moisture, shock and vibration for use in harsh environments like vehicle controls, machinery, off‑road and construction applications. Featuring a positive latching “push‑to‑lock” emergency action and a robust 30 mm mushroom actuator, it delivers dependable interruption of circuits up to 10 A across 9‑32 V systems with silver alloy contacts and quality copper/zinc terminals for longevity and corrosion resistance. With plug‑and‑play connectivity and twist‑to‑release reset, it’s ideal for OEM panels and retrofit installations where safety and compliance are non‑negotiable — engineered to meet the toughest performance and durability standards for industrial emergency stop applications.

Approvals:
IP69, IP69K

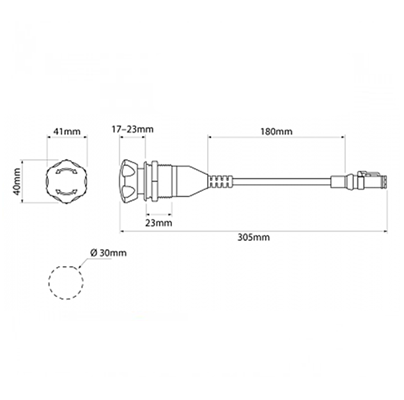

Dimensions:
41mm (w) x 40mm (h) x 305mm (d)

Additional Information:
Latching – turn to release
Plug and play emergency stop switch
Silver Alloy Contacts
Copper zinc alloy terminals
Thermoplastic connector
9 – 32 volt

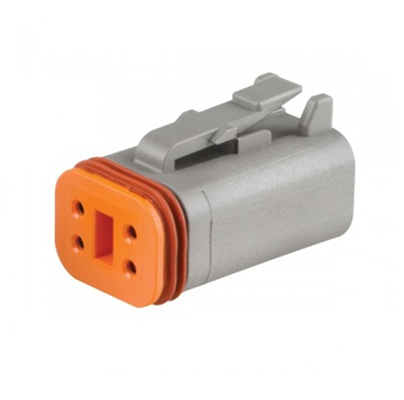

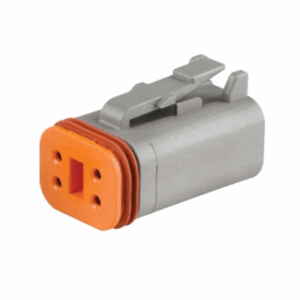

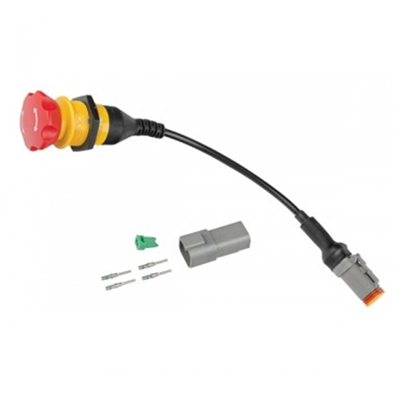

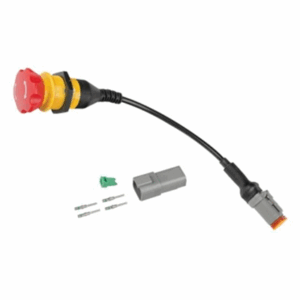

Supplied with an integrated TE Deutsch 4 pin connector
Recessed panel mount available
