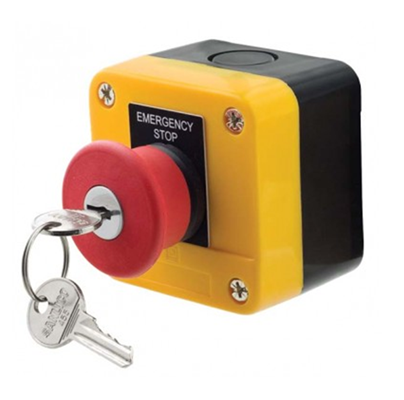

BA SERIES E-STOP – LOCKABLE

BA Series E‑Stop – Lockable delivers industrial‑grade safety and fault‑proof machine shutdown in emergency situations, engineered for harsh environments and critical operations. Rated IP65 for dust and water ingress protection with a rugged polycarbonate body and silver alloy contacts, this robust emergency stop switch supports 6V–36V systems, mounts easily to any base and includes both 1 x N/O and 1 x N/C contact block for reliable fail‑safe control. The lockable design provides enhanced safety and authorised reset control — preventing unintentional restarts and empowering compliance with machine safety practices. Compact yet powerful, it’s the ideal choice for industrial equipment, automation panels, vehicles and hazard‑critical applications demanding fast, unmistakable shutdown performance.

Approvals:
IP65

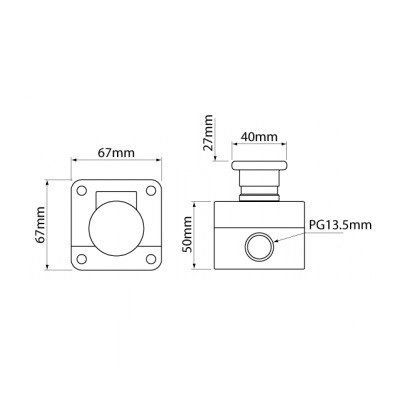

Dimensions:
67mm (h) x 67mm (w) x 50mm (d)

Additional Information:
Lockable
Mounts to base
Silver Alloy Contacts
Polycarbonate body
IP65
6V – 36V
Polymer button with Polycarbonate Body

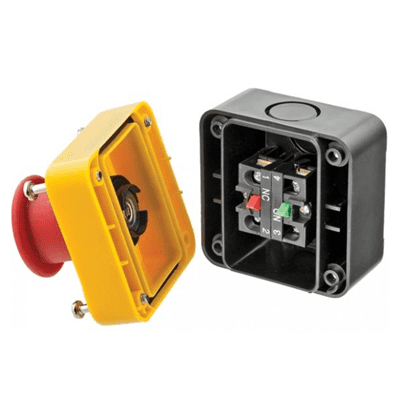

Supplied with 1 X N/O and 1 X N/C Contact Block
