HD WIRELESS COMMERCIAL CAMERA SYSTEM – 7″ LCD BUILT-IN DVR MODULE

HD WIRELESS COMMERCIAL CAMERA SYSTEM – 7″ LCD BUILT-IN DVR MODULE

This is a commercial-grade wireless camera and monitor system designed to improve visibility, reversing safety and driver awareness for trucks, buses, trailers, caravans, machinery and heavy-duty commercial vehicles.

Featuring a 7” HD LCD monitor and CAM150WHD wireless camera, this system provides clear high-definition video, long-range wireless transmission, night vision, built-in audio and flexible multi-camera viewing options. Its wireless design helps reduce installation time by eliminating the need for long video cable runs.

The CCS714WHD supports up to 4 camera channels and offers quad, split or single-screen viewing, making it ideal for vehicles requiring rear, side or multiple-angle visibility. With built-in DVR recording, programmable parking guidelines and automatic camera pairing, it is a reliable solution for commercial fleet and industrial vehicle applications.

Key Features

7” high-definition LCD colour monitor
Wireless CAM150WHD camera included
Supports 1, 2 or 4 camera channel setup
Quad, split or single-screen display options
Wireless range up to 400m line of sight
Automatic monitor and camera pairing
Built-in DVR recording with SD card storage
Programmable parking guidelines
Mirror and normal image switching
Built-in speaker and camera microphone
Night vision with 6 white LEDs
IP68 waterproof camera rating
10G vibration resistance
Wide voltage input: DC 9V–36V
Suitable for trucks, buses, trailers, caravans and machinery
Two-year warranty

Monitor Specifications

Screen size: 7.0” LCD
Display resolution: HD 1280 x 720P
Wireless frequency: 2.4G digital
Transmission delay: 150ms average
Camera channels: 1–4, auto or manual selection
Channel hopping: 125 channels
Brightness: 350cd/m²
Speaker: Yes
Mirror image: Menu selectable
Power input: DC 9V–36V
Power consumption: Less than 5W
Dimensions: 185W x 128H x 26D mm
Weight: 400g
Operating temperature: -20°C to +70°C

Camera Specifications

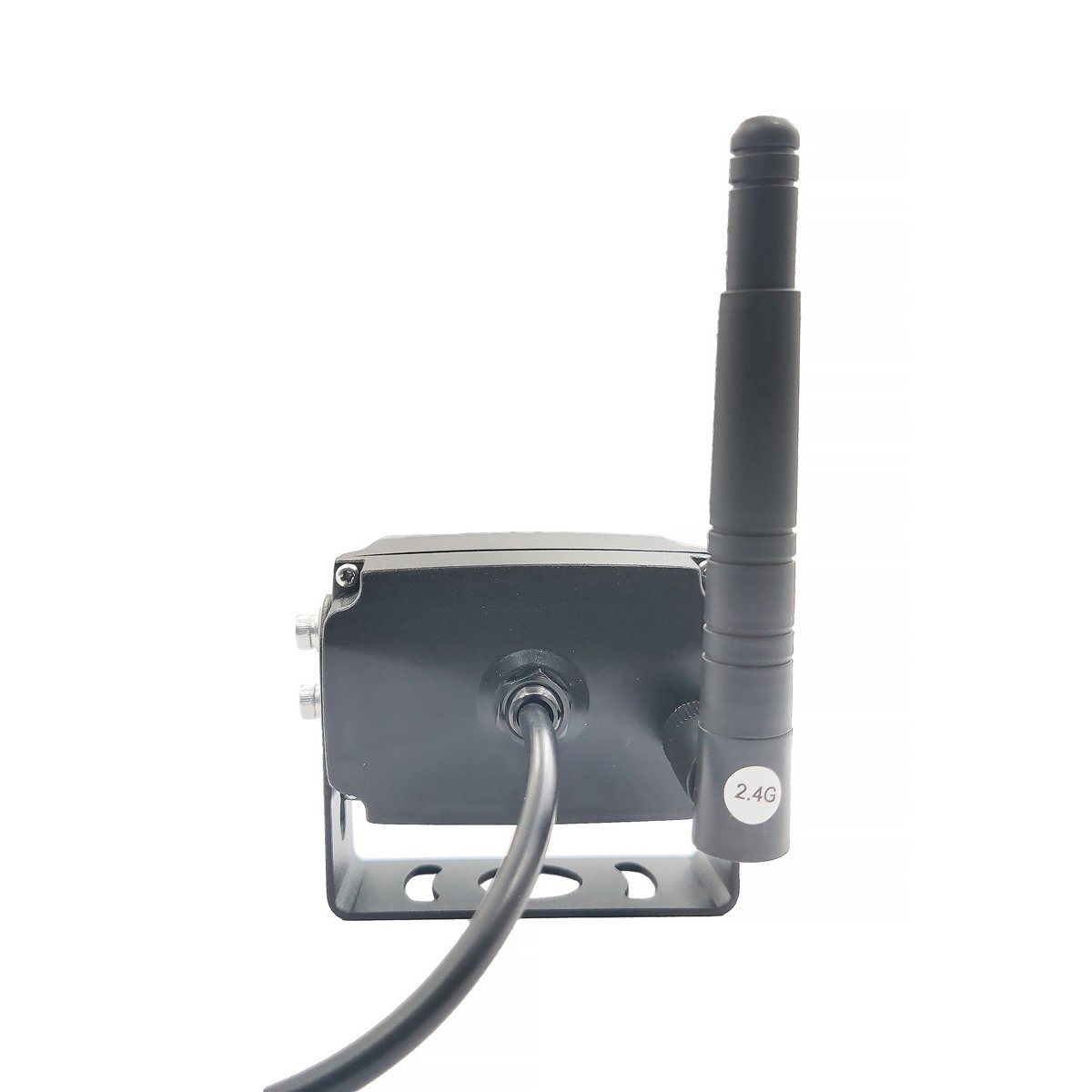

Camera model: CAM150WHD
Image sensor: 1/3.7” CMOS BSI colour sensor
Pixels: 1280H x 960V
Resolution: HD720P
Lens angle: 130° diagonal
Wireless range: Up to 400m line of sight
Microphone: Yes
Night vision: 6 white LEDs, up to 10m visibility
LED control: Automatic photo sensor
Power input: DC 9V–36V
Power consumption: Less than 1W
Housing: Aluminium alloy
Mounting: Permanent tilt bracket
Vibration rating: 10G
Waterproof rating: IP68
Dimensions: 93W x 83.5H x 57D mm
Weight: 272g
Operating temperature: -40°C to +85°C
