COMMERCIAL CAMERA SYSTEM – 7″ LCD MONITOR | 3 INPUT CONTROL MODULE

Commercial Camera System with 7″ LCD Monitor

This heavy-duty 7” commercial reversing camera system designed for trucks, vans, utes, buses, caravans, trailers, motorhomes, service vehicles, fleet vehicles and industrial machinery. Built for professional vehicle safety applications, the wired rear view camera kit helps improve driver visibility, reduce blind spots and make reversing, parking, loading and manoeuvring safer and easier.

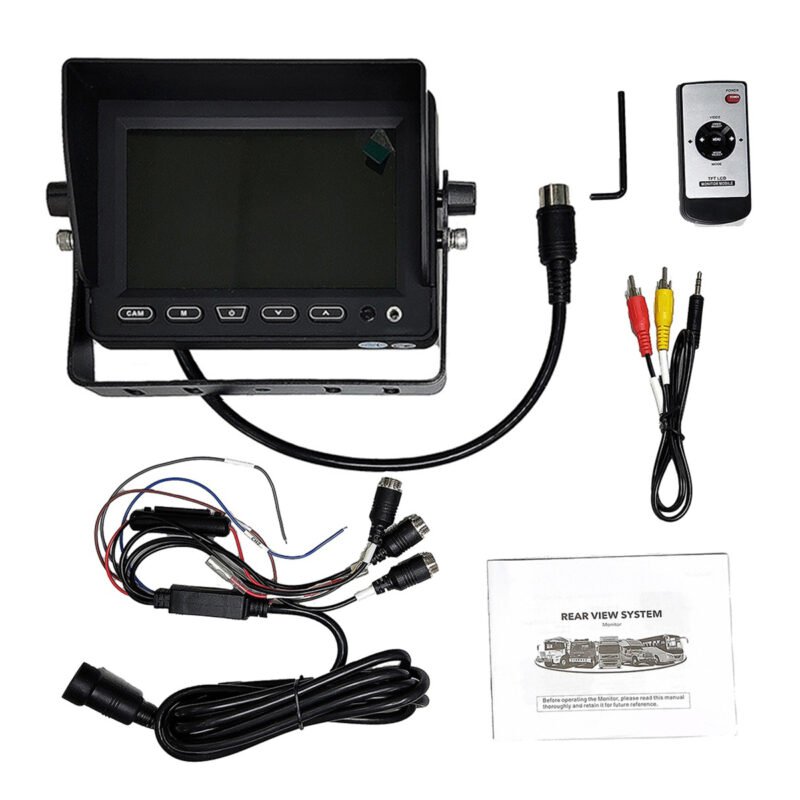

This complete reverse camera and monitor kit includes a 7” TFT LCD colour monitor, commercial-grade rear camera and 20m cable, making it a reliable plug-and-play solution for a wide range of 12V and 24V vehicle installations. The CCS703 is ideal for commercial vehicle camera fit-outs, truck reversing camera upgrades, caravan rear view camera systems, trailer camera installations and fleet safety equipment applications.

The high-resolution 7 inch monitor supports up to three camera inputs, allowing the system to be expanded for rear, side, front or multi-camera vehicle coverage. This makes it suitable for drivers who need better visibility around large vehicles, work vehicles, delivery vans, buses, trucks, horse floats, trailers, machinery and heavy-duty commercial vehicles.

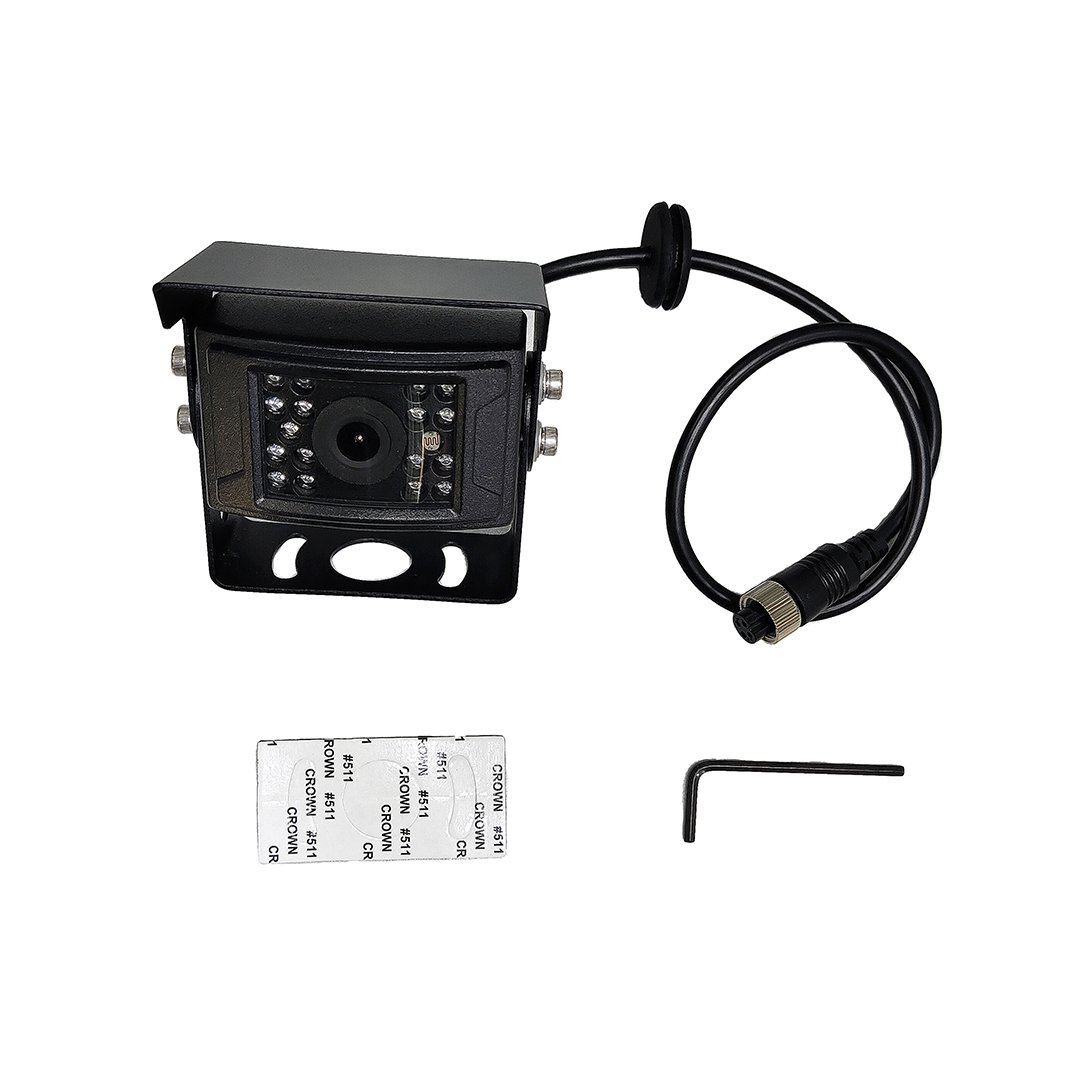

The included CAM155 camera features a Sony CCD image sensor, 700TVL resolution, 150° diagonal wide-angle viewing, IR night vision and built-in audio. The camera is designed to deliver clear rear vision in day, night and low-light conditions, helping drivers see obstacles, pedestrians, loading areas, tow hitches and blind spots more clearly.

Built for demanding Australian vehicle and fleet environments, the CCS703 camera features a durable aluminium alloy housing and an IP69K waterproof rating for strong protection against water, dust and harsh outdoor conditions. The monitor operates on a wide DC 10V–32V input range, making it suitable for both 12V and 24V commercial vehicle electrical systems.

For businesses, installers and vehicle operators looking for a dependable truck reversing camera system, commercial vehicle rear view camera, caravan reverse camera kit, trailer camera system or 7 inch monitor camera kit, the Smart Park CCS703 delivers a practical, durable and expandable solution for safer reversing and improved vehicle visibility.

Key Features

• 7” commercial reversing camera system with LCD monitor
• Heavy-duty rear view camera kit for trucks, vans, buses, caravans and trailers
• Ideal for fleet vehicles, commercial vehicles and work vehicles
• Complete wired reversing camera kit with 20m cable
• Expandable 3-channel monitor for rear, side or front camera input
• High-resolution 7 inch TFT LCD colour monitor
• Sony CCD camera sensor for clear image quality
• 700TVL camera resolution
• 150° diagonal wide-angle rear vision camera
• IR night vision reversing camera for low-light visibility
• IP69K waterproof camera for harsh outdoor conditions
• Built-in microphone and audio support
• Programmable parking guidelines
• Mirror and normal image switching
• Suitable for 12V and 24V vehicle systems
• Wide DC 10V–32V monitor operating voltage
• Heavy-duty U-shape mounting bracket
• Remote control included
• Two-year warranty

Suitable Applications

• Truck reversing camera system
• Commercial vehicle camera system
• Van rear view camera kit
• Ute reversing camera system
• Bus reverse camera system
• Caravan reversing camera kit
• Trailer camera system
• Motorhome rear vision camera
• Fleet vehicle safety camera system
• Machinery and equipment camera system
• Delivery vehicle reversing camera
• Service vehicle rear view monitor kit

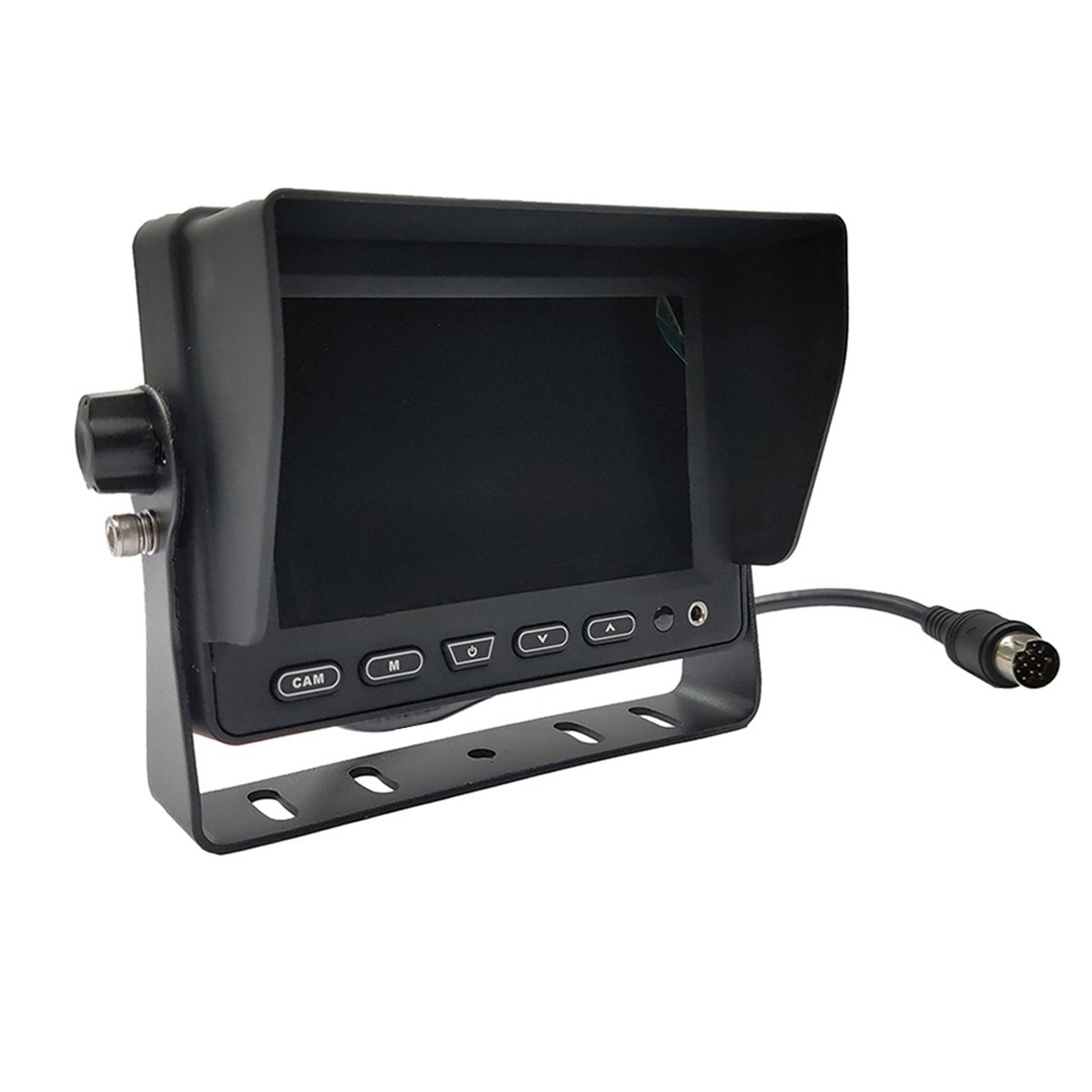

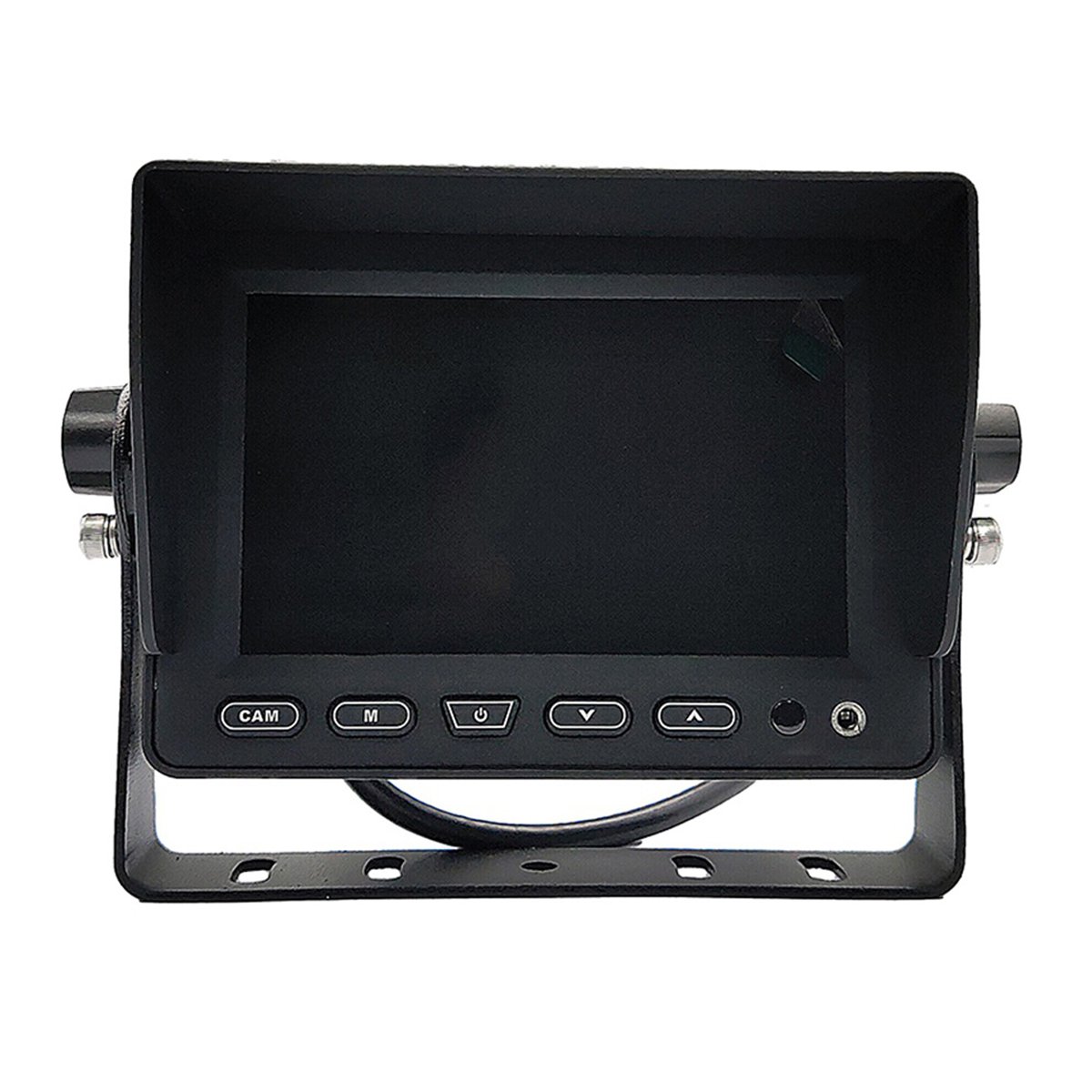

Monitor Specifications

• Screen size: 7 inch
• Display type: TFT LCD colour monitor
• Resolution: 800 × RGB × 480
• Brightness: 500cd/m²
• Camera inputs: 3 AV inputs
• Video output: CVBS signal
• Operating voltage: DC 10V–32V
• Operating temperature: -20°C to +70°C
• Housing material: ABS
• Mounting bracket: U bracket
• Sunshade: Removable

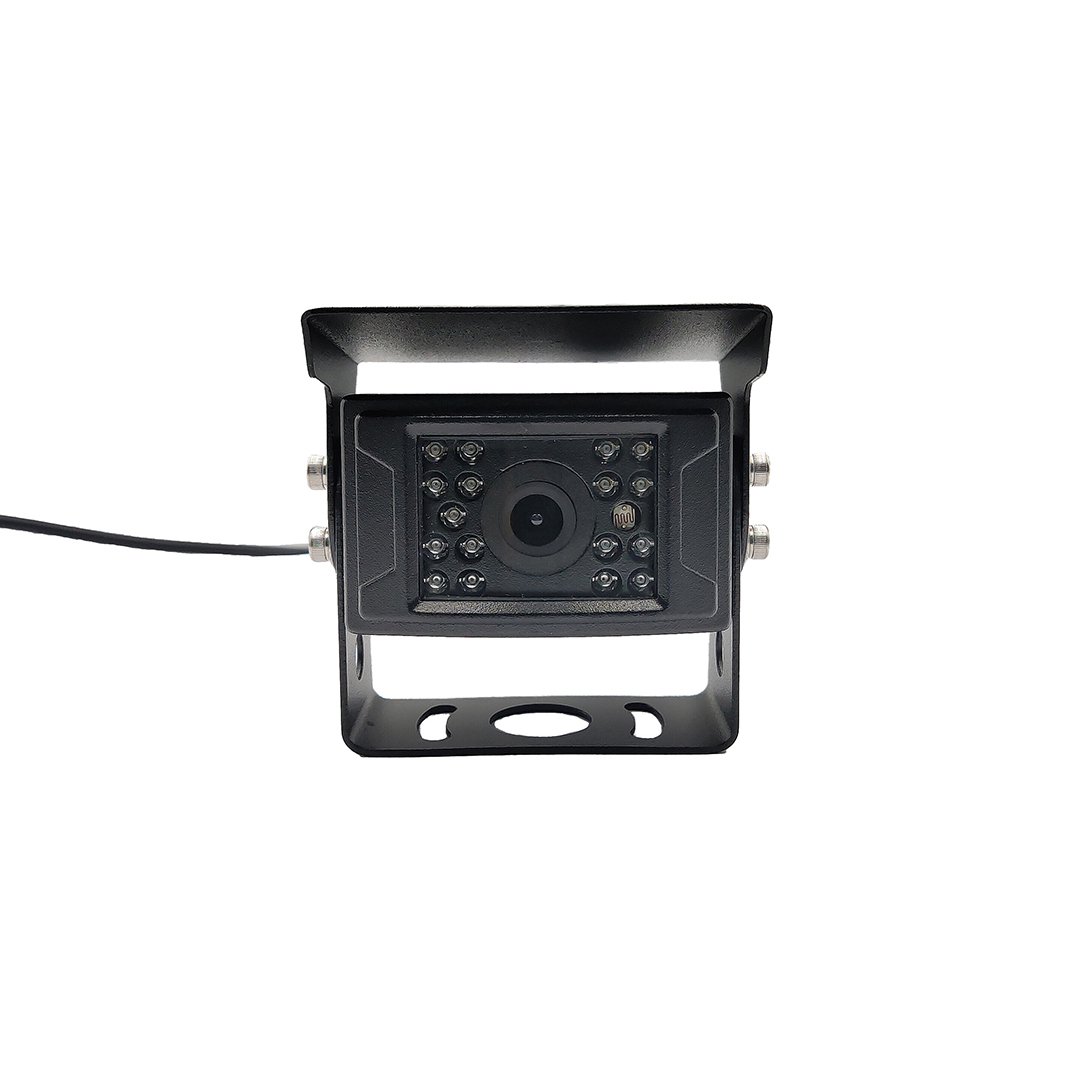

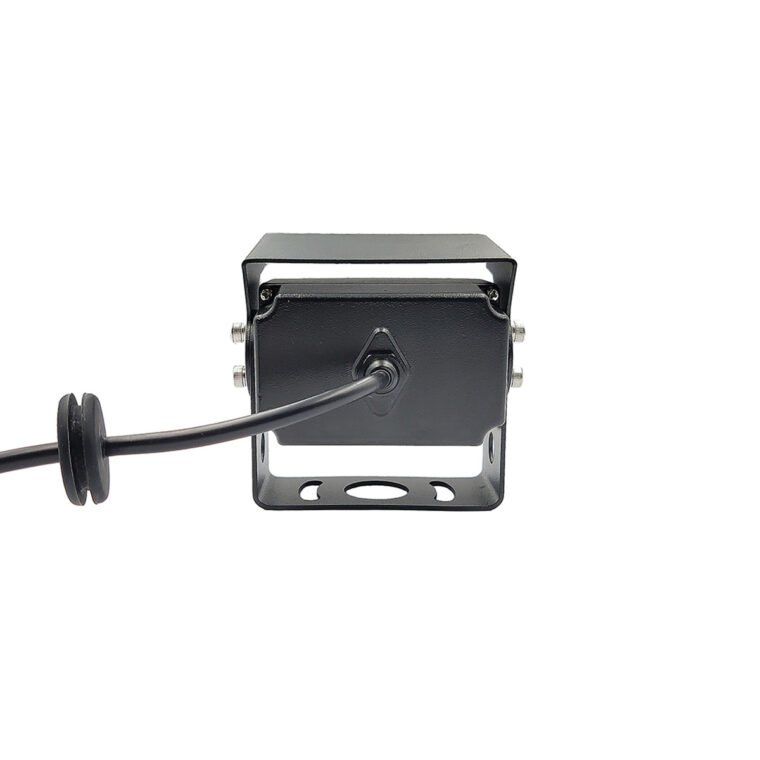

Camera Specifications

• Camera model: CAM155
• Image sensor: Sony CCD
• Resolution: 700TVL
• Viewing angle: 150° diagonal
• Night vision: IR illumination
• Audio: Built-in microphone
• Waterproof rating: IP69K
• Operating voltage: 12V
• Operating temperature: -20°C to +70°C
• Housing material: Aluminium alloy
