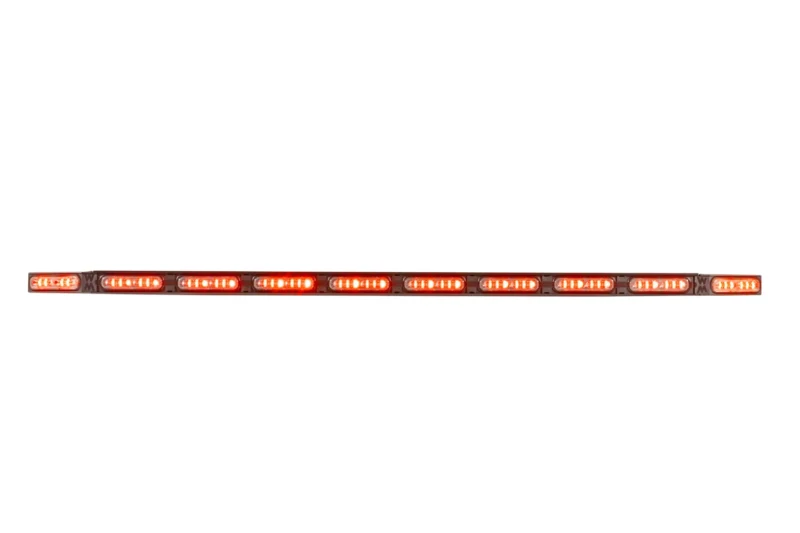

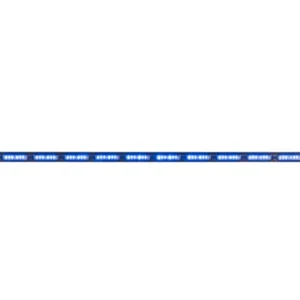

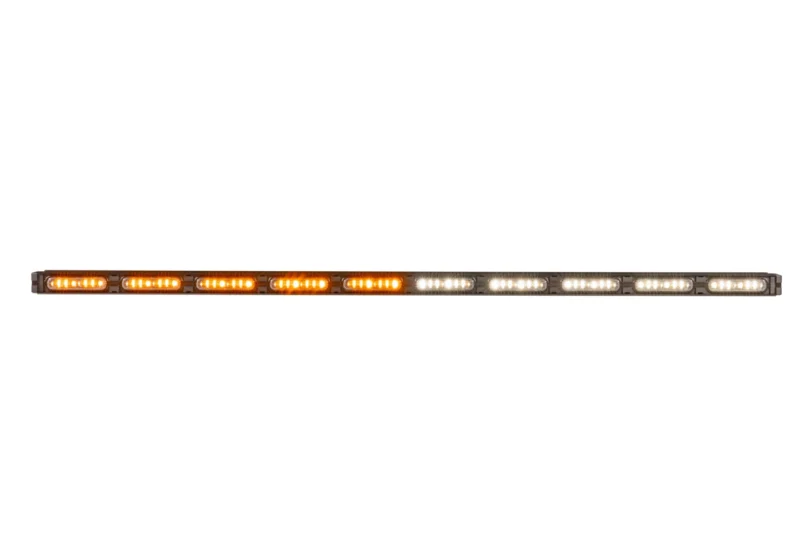

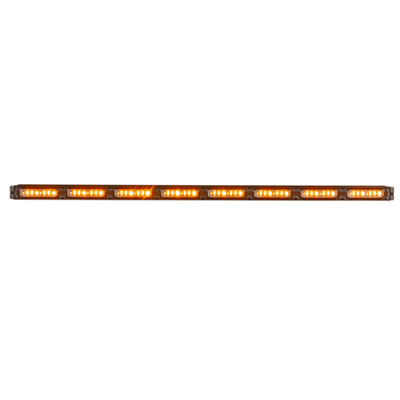

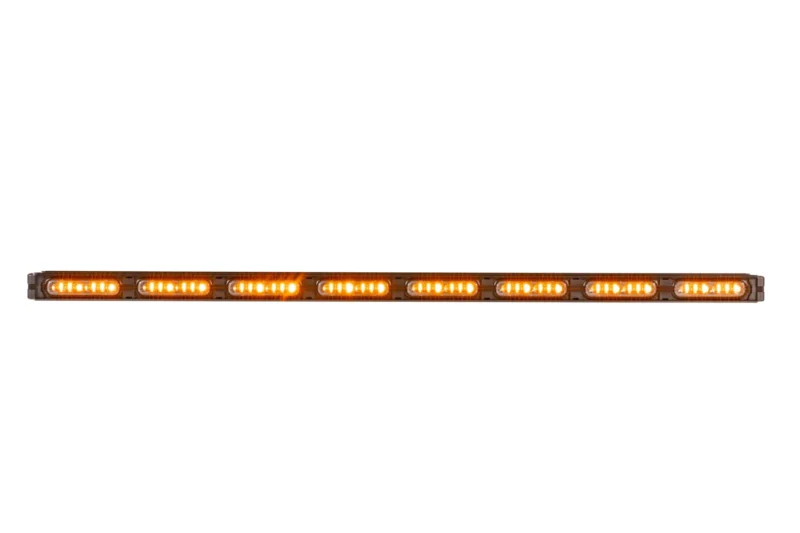

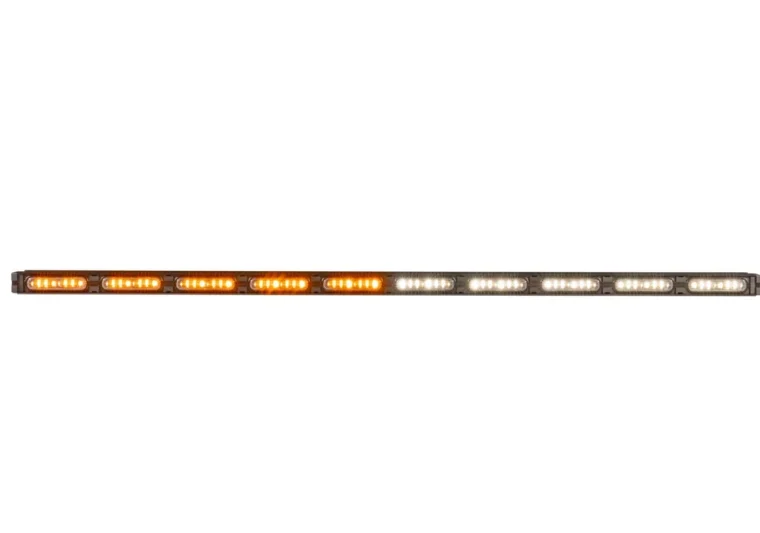

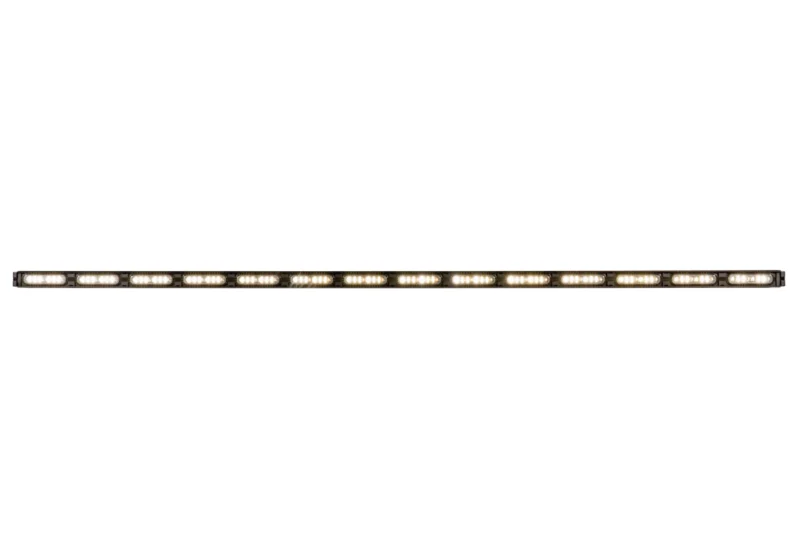

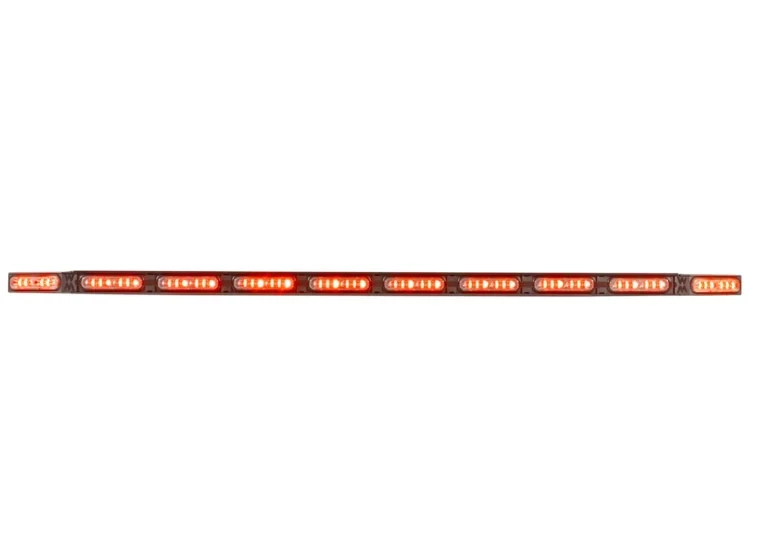

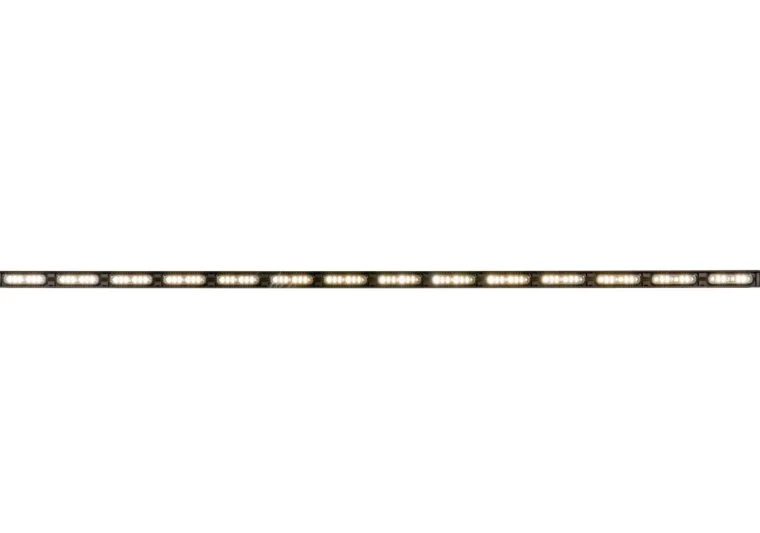

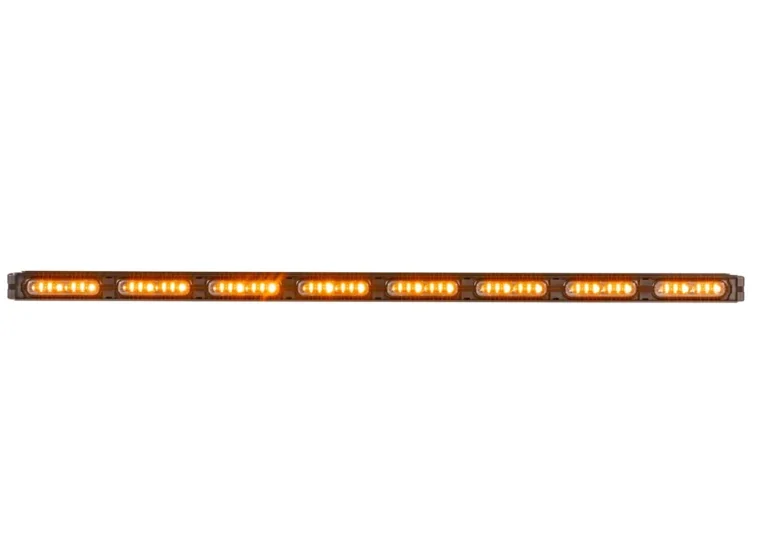

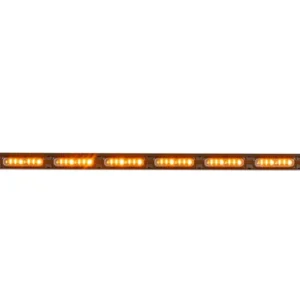

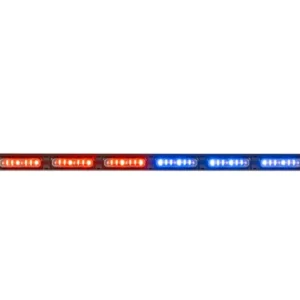

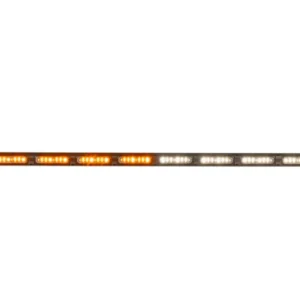

WHELEN WECANX 2250 WITH TRAFFIC ADVISOR

SKU 562-WX2240

Additional Information

The Whelen WeCanX® 2250 with Traffic Advisor™ is a cutting-edge light array that delivers advanced programmability and connectivity for emergency, law enforcement, and commercial vehicles. Combining the performance and reliability of Whelen’s T-Series™ lightheads with the customization and control of WeCanX, it provides flexibility for customizing light patterns, flash rates, and modes to meet the specific needs of any fleet. The 2250’s streamlined interface and configuration options in WeCad™ make setup, maintenance, and updates quick and intuitive, reducing vehicle downtime and increasing efficiency. Its rugged design ensures long-lasting durability, making it suitable for any environment.

Features:

Customizable Design: Tailor your lightbar to your exact needs using WeCad lightbar designer
Slim Design: 50% slimmer than the 4500 Series

Contact AWS sales team for car specific lights, accessories and installation prices

Specifications:

Please note: Not all specifications will apply to every model. Consult your sales representative to confirm specs.

Optics	T-Series™ lightheads: 6-Light (30″), 8-Light (40″), 10-Light (50″), 12-Light (60″), 14-Light (70″), 16-Light (80″)
Technology	Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety E Block™: Patented watertight seal prevents moisture from entering the lighthead
Flash Patterns	Models are programmable with unlimited flash patterns, via Command®
Control	WeCanX®

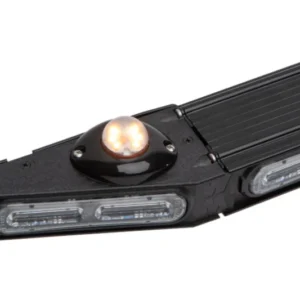

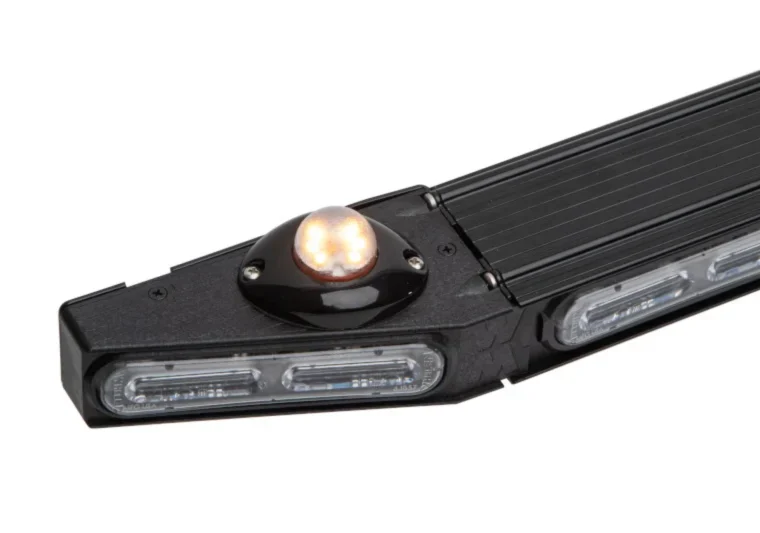

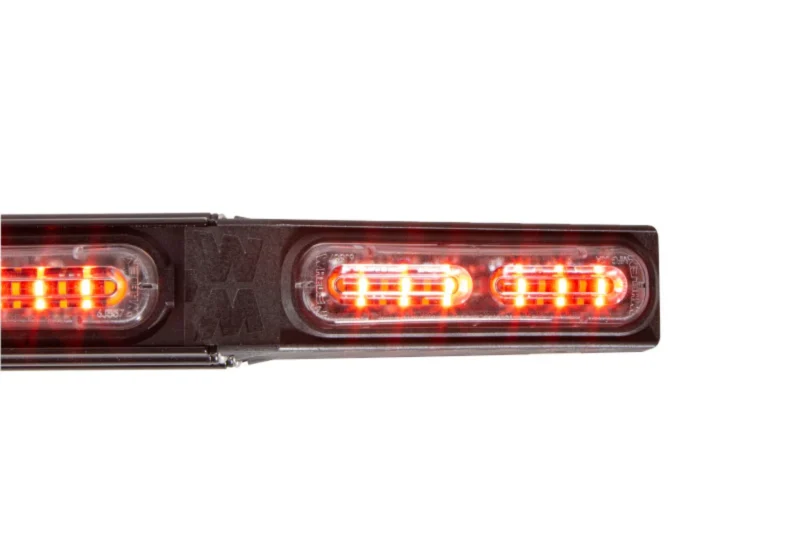

Customization	Lengths: Multiple lengths available End Caps: Angled and/or flat options available Cable Lengths: 25′, 35′, 45′, and 55′ options available Optional Additions: Aerial recognition (Vertex™ lighthead)

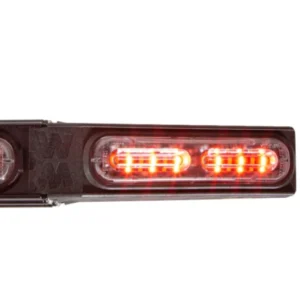

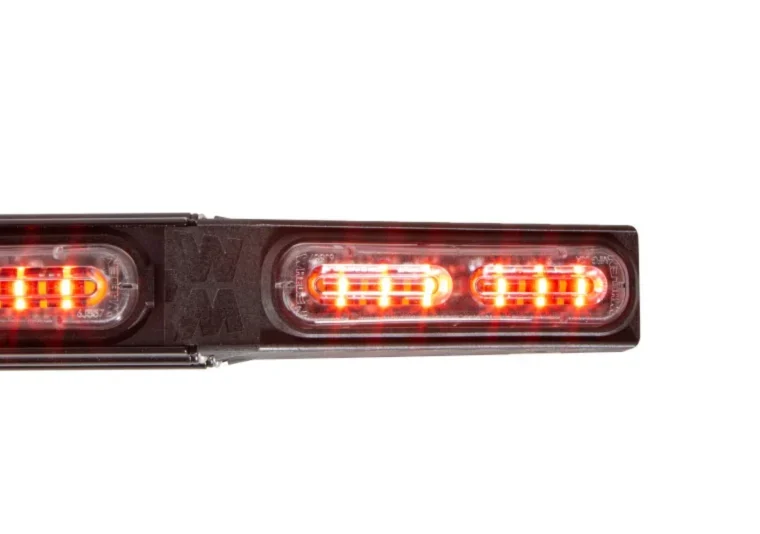

Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals E Block™: Patented watertight seal prevents moisture from entering the lighthead
Mounting	Slide Bolt (Flush Mount)
Included Cables & Hardware	15′ (4.57 m) cable
Certifications	SAE Standards SAE Class 1 Environmental IP67 Regulatory Compliance R10 R148
Warranty	10-year Please see our warranty statement for more information here.
Voltage	10-30 VDC
Amps	12.8 VDC: 0.62 (peak), 0.25 (avg.) per lighthead 25.6 VDC: 0.32 (peak), 0.13 (avg.) per lighthead
Size	Angled End Cap Lengths Available: 29.76″ (75.59 cm), 39.87″ (101.27 cm), 49.97″ (126.92 cm), 60.09″ (152.63 cm), 70.19″ (178.28 cm), 80.29″ (203.94 cm) Flat End Cap Lengths Available: 21.87″ (55.55 cm), 31.98″ (81.23 cm), 42.08″ (160.88 cm), 52.19″ (132.56 cm), 62.29″ (158.22 cm), 72.40″ (183.90 cm), 82.50″ (209.55 cm) Height: 1.66″ (4.22 cm) without Vertex / 2.47″ (6.27 cm) with Vertex Width: 2.28″ (5.79 cm)
