WHELEN LIGHTBAR TRACER – WECANX

SKU 562-TCRWX5

Additional Information

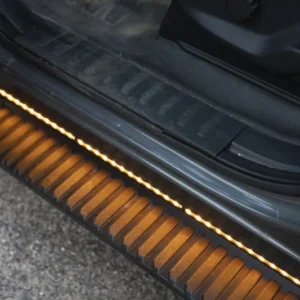

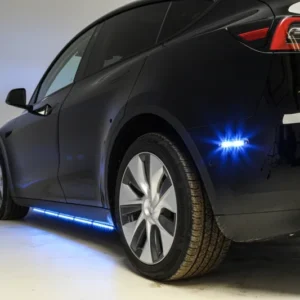

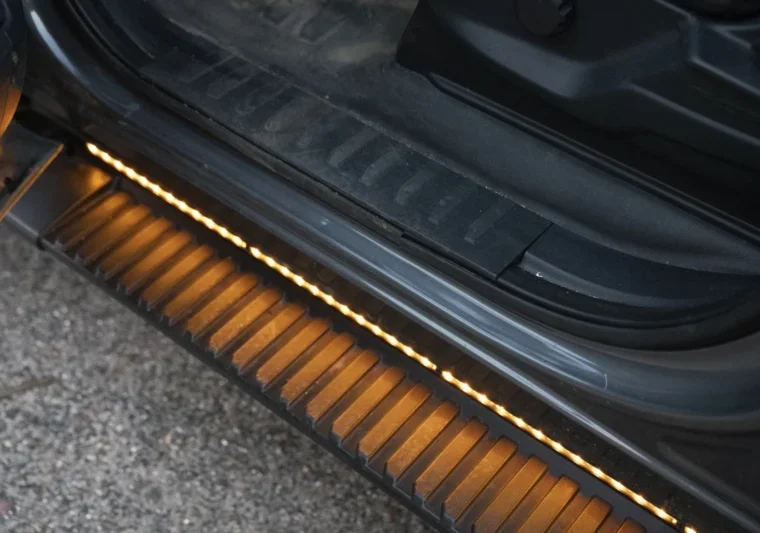

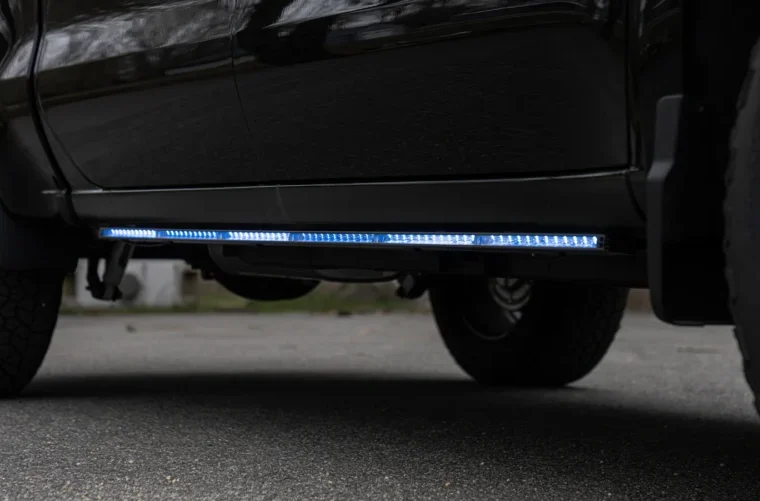

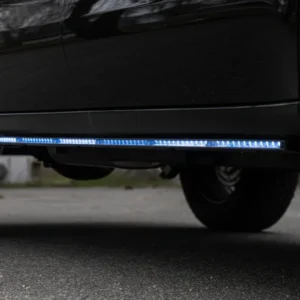

The Whelen Tracer™ WeCanX® is a cutting-edge lighting solution that provides superior side and undercarriage illumination for police, fire, and commercial vehicles. With its flexible, low-profile design, it can be seamlessly integrated into a vehicle’s contours, delivering increased visibility without compromising the sleek appearance of the vehicle. The Tracer WeCanX features our powerful lightheads, using upgraded optics and an innovative lens design to produce sharp, dynamic lighting. Utilizing our WeCanX technology, this light array can be customized to a wide variety of color options, patterns, and sync capabilities, allowing complete control over how the vehicle is lit. Whether installed along running boards, side steps, or under the vehicle, the Tracer WeCanX provides critical lighting to ensure safety and increase visibility in high-risk situations.

Features

Customizable Design: Tailor your lightbar to your exact needs using WeCad lightbar designer
Segmented Modules: Each module features 4 individually controlled segments for seamless lighting displays and versatile configuration
DUO™ and TRIO™ Functionality: Capable of operating with a steady override, including white steady-burn, controlled via Whelen Command®
Traffic Advisor™ Functionality: Provides directional lighting for efficient traffic management and increased safety
Cruise Light Control: Adjustable intensity levels managed through Whelen Command® for customizable lighting

Color Codes:

Replace * symbol in model number with letter indicating color desired: A = Amber, B = Blue, C = White, G = Green, R = Red

Replace # symbol in model number with letters indicating color combination desired: D = Red/White, E = Blue/White, F = Amber/White, J = Red/Blue, K = Red/Amber, L = Red/Green, M = Blue/Amber, P = Amber/Green

Replace #* symbol in model number with letters indicating color combination desired: JA = Red/Blue/Amber, JC = Red/Blue/White, KC = Red/Amber/White, KG = Red/Amber/Green, LC = Red/Green/White, MC = Blue/Amber/White, MG = Blue/Amber/Green, NC = Blue/Green/White, PC = Green/Amber/White

Specifications:

Please note: Not all specifications will apply to every model. Consult your sales representative to confirm specs.

Optics	Super-LED® light array: SOLO™, DUO™, and TRIO™ models available
Technology	Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety Vehicle-to-Vehicle Sync (V2V): Enhanced emergency scene safety with synchronized flash patterns .
Flash Patterns	30 Scan-Lock™ patterns Traffic Advisor and Steady-Burn programmable via Command®
Control	WeCanX®
Customization	Lenses: Clear or Smoked
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals
Mounting	Slide Bolt Mounts easily via slide bolt with vehicle-specific brackets, universal “L” brackets, or under lightbar brackets”
Included Cables & Hardware
Certifications	SAE Standards SAE Class 1 (Clear Lens: Amber, Blue, Red / Smoked Lens: Amber) SAE Class 2 (Clear Lens: White / Smoked Lens: Blue, Red, White) SAE Class 3 (Clear Lens: Green / Smoked Lens: Amber) Environmental IP67
Warranty	10-year
Voltage	12 VDC
Size	Available Lengths: 13.8″ (35.05 cm), 26.16 (66.45 cm), 38.53″ (97.87 cm), 50.90″ (129.29 cm), 63.26″ (160.68 cm), 75.62″ (192.07 cm) Height: 0.93” (236 mm) Width: 2.04” (5.18 cm)
