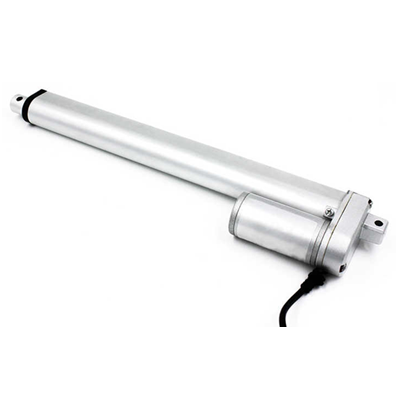

LINEAR ACTUATOR

Linear Actuator – High‑Performance Replacement Linear Actuator (200 mm Stroke, 1000 N) is engineered for reliable, straight‑line motion in demanding warning system applications including AC5/AC7 Arrowboards and Electric Roof Mounted Signs. Built with a robust aluminium alloy body and stainless‑steel end piece, this rugged 12 V/24 V unit delivers 1000 N of force with an in‑built limit switch for precise extend‑retract control and a durable IP54 weather‑resistant rating for outdoor use. Compact yet powerful (310 mm closed, 510 mm extended) with a brushed steel finish and backed by a 1‑year warranty, it’s the ideal OEM‑quality drop‑in replacement actuator to keep your vehicle or site signage moving smoothly and reliably.

The 10 Series Linear Actuator is to suit our AC5/AC7 Arrowboards and our Roof Mounted Electric Signs.

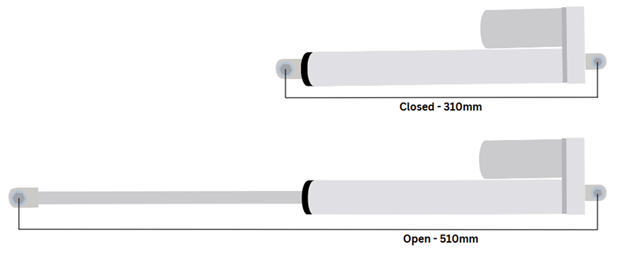

Dimensions:
310mm (closed)
510mm (open)

Additional Information:
Available in 12 or 24 Volt
IP54
1000N
200mm stroke
In-built limit switch
Aluminium alloy body
Stainless steel end piece
Brushed steel finish
1 year warranty

Please Note:
Should the actuator you are replacing is black in colour, contact our sales team.
03 9796 5880 or sales@warningsystems.com.au
