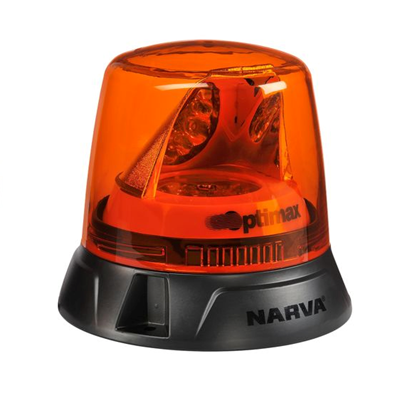

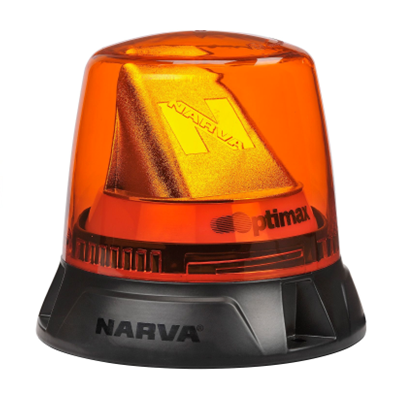

OPTIMAX LED BEACON

Optimax LED beacons are engineered to produce smooth, highly visible rotating patterns suitable for all civil applications.
This has been achieved by a proprietary reflector optic to spread the light combined with 6 x 5 watt high power LEDs.
This output ensures Optimax LED Beacons meet Heavy Vehicle Regulation 2013 No.77.
This extreme output also makes the Optimax beacon range as visible even as traditional halogen beacons with 55W (or 70W) globes with a fraction of the current draw.

Approvals:
SAE J845 Class I, W3-1, CISPR Class 3, IP67, 10R-06.22895 (R10)

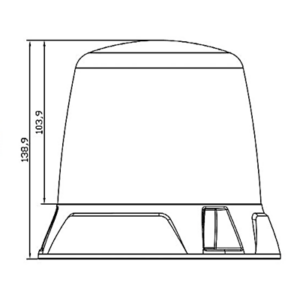

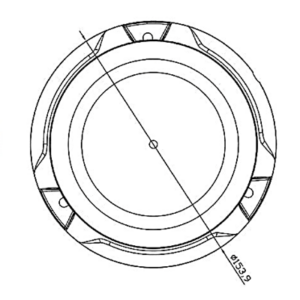

Mounting and Dimensions:
139mm (h) x 154mm (w)

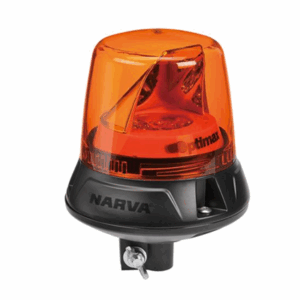

Also available in magnetic and pole mount

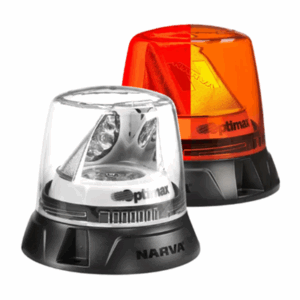

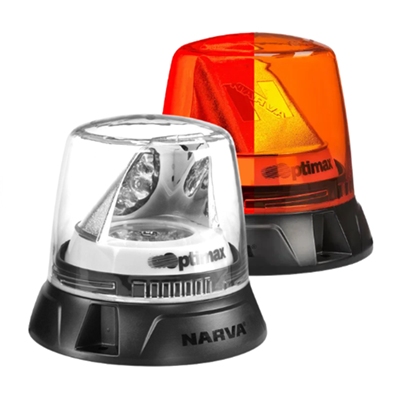

LED Colours Available:
Amber, Amber/Green, Amber/Red
Clear lens only available for split colours

Additional Information:
6 x 5w (30ow) LED output
120-200 FPM
10-33 Volt
Diecast aluminium base, virtually unbreakable lens
Vibration resistant stepper motor & over voltage protection
Environmentally sealed – IP67
3 Year Warranty
