Noxsolis NX801 – 11.5″ Slimline LED Light Bar – Combo Beam
Additional Information
Product Description

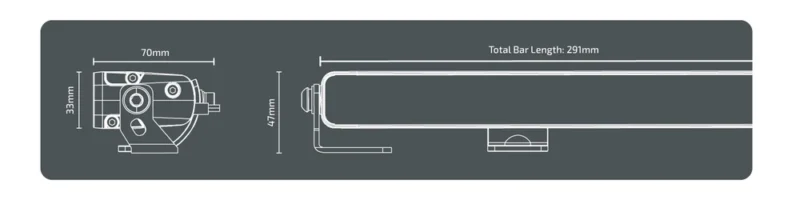

The NOXSOLIS NX801 11.5″ Slimline LED Light Bar is part of the new NX8SL series, designed to offer both style and functionality in a compact form. Its sleek and slim profile, measuring just 33mm in height, allows it to blend seamlessly into larger front-end setups, providing powerful illumination without compromising aesthetics.
Please note: A wiring harness is not provided with this kit.

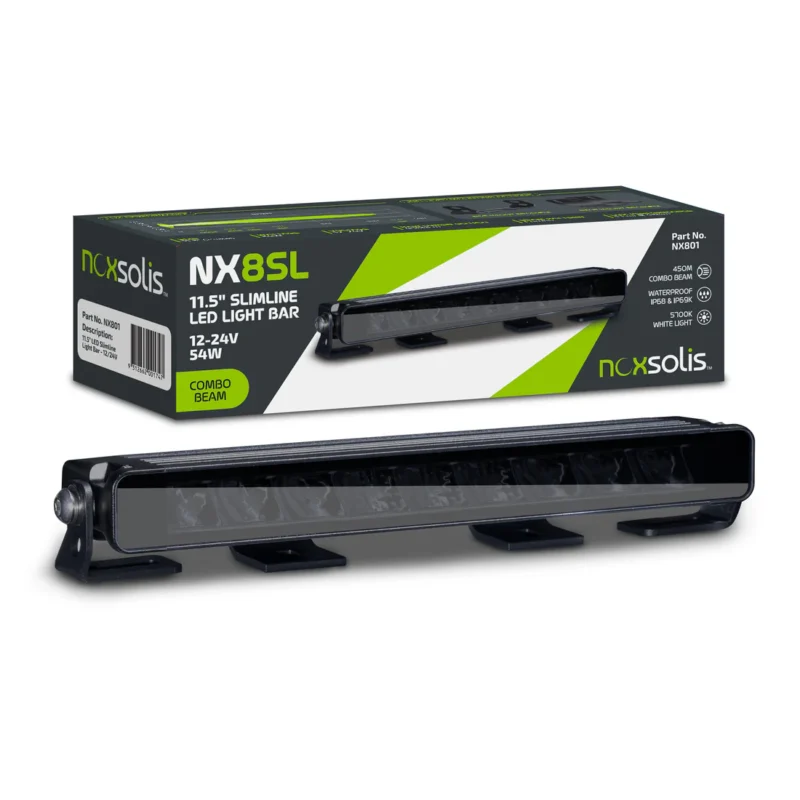

Kit Contents
1 x LED Light Bar
2 x Side brackets & 2 adjustable rear brackets (mounting hardware included)
Key Features:
Combo Beam Pattern: The combo beam delivers an optimal balance between wide-area flood light and a focused spot beam, offering a 450m beam distance at 1 lux. Ideal for off-road and on-road use, it improves both close-range and long-distance visibility.
High-Performance Reflector System: Using a high-quality reflector system, the NX801 maximizes the efficiency of the LEDs, ensuring bright and clear lighting for enhanced visibility during low-light conditions.
Slim and Discreet Design: With a low-profile and bezeless design, the NX801 integrates effortlessly into vehicles with limited space, blending perfectly into the vehicle’s appearance.
Durable Construction: Built with robust materials to withstand harsh environments, the NX801 features impact-resistant polycarbonate lenses and a die-cast aluminum housing for maximum durability.
Waterproof & Shock Resistant: With an IP68 & IP69K waterproof rating, the light bar is fully sealed to resist dust, water, and debris, ensuring reliable performance in all weather conditions.
EMI Approval: Compliant with R10 EMI standards, ensuring minimal electromagnetic interference with other vehicle electronics.
Easy Installation: The NX801 comes with a simple mounting system that allows for quick and easy installation, making it a hassle-free upgrade for your vehicle.
12-Month Warranty: Backed by a 12-month warranty, the NOXSOLIS NX801 ensures peace of mind and long-lasting reliability.
Range-Wide Specifications:
Raw Lumens: 4,900
Wattage: 54W
Maximum Current Draw: 3.9A @ 13.8V, 2.2A @ 24V

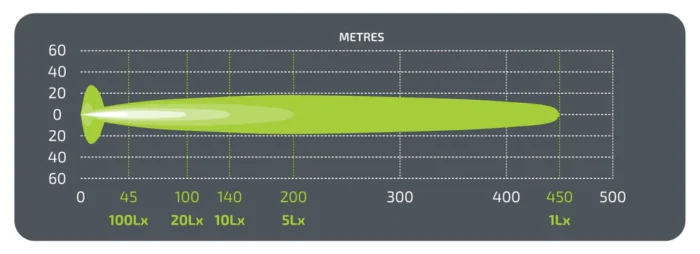

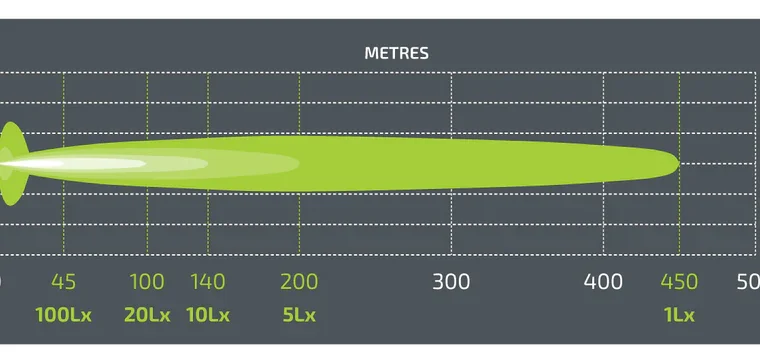

Beam Distance: 1 Lux at 450m
Weight: 0.64kg
Mounting: Side or rear mount brackets
Connection: 2 Pin DT
Colour: White light 5700K
Voltage: 12-24V
Wiring: 500mm to 2 Pin DT or DT-P connection. (150mm fly lead included)
Waterproof Rating: IP68 & IP69K
Warranty: 3 Years
Contact AWS sales team for car specific lights, accessories and installation prices
