CODE 3 M5 MESSAGE DISPLAY

CODE 3 M5 Matrix LED Vehicle Message Display – Ultimate Safety & Emergency Signage
Upgrade your fleet, emergency, construction, council, or traffic control vehicles with the CODE 3 M5 LED Message Display, Australia’s premium vehicle-mounted VMS board. Featuring ultra-bright amber or red high-intensity LEDs, IP67 weatherproof housing, and innovative optics for maximum legibility, this programmable LED message board is clearly readable from over 100 m, day or night. Equipped with a touchscreen OLED controller, 2GB microSD storage, and PC software programmability for up to 99 custom messages, it delivers unmatched flexibility for emergency lights, warning signs, directional alerts, lane closures, roadwork signage, tow truck messaging, and municipal safety communications. Compact, rugged, and Australian-made, it operates on 10–30 VDC, fully ECE R10, C-Tick and RoHS compliant, and is engineered for harsh environments. Ideal for fleet vehicles, utility trucks, airports, construction, mining, and council operations, the M5 is the definitive high-visibility LED message display, outperforming all competitors in programmable safety signage, variable message boards, vehicle arrow boards, emergency vehicle lighting, and roadside warning solutions.

Approvals:
ECE R10, ROHS, C-TICK, IP67

Dimensions:
Message Board: 590mm (w) x 145mm (h) x 40mm (d)
Controller: 92mm (w) x 55mm (h) x 15mm (d)

LED Message Board:
Australian Made Product
Easily readable from 100 meters
Environmentally sealed – IP67 (display only)
10-30 Volt operation
288x high intensity LEDs
Available in amber or red LEDs
Innovative optical design to improve legibility and reduce sunshine washout
Mount on rear decks, roof racks, lightbars, canopies, etc..
1-year warranty

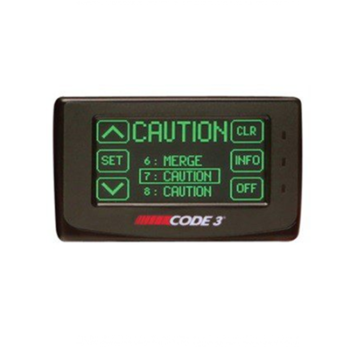

O-LED Touch Screen Controller:
Australian Made Product
PC message programmer – Program up to 99 messages
MicroSD message storage and firmware update

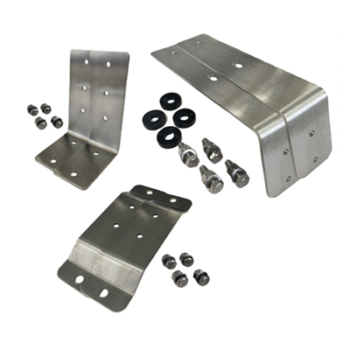

Adhesive tape mounting or optional swivel-mount kit
1-year warranty
