MATRIX MESSAGE BOARD | VEHICLE MOUNTED RGB LED DISPLAY

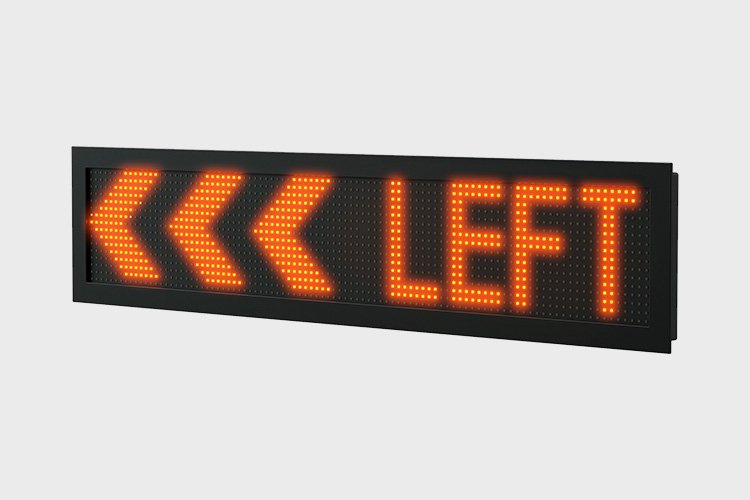

The Matrix Message Board MMB-RGB 96×16 is a high-visibility vehicle-mounted RGB LED message board designed for emergency vehicles, traffic management vehicles, road safety fleets, service and utility vehicles, construction, mining, councils and specialist vehicle applications. Its 96×16 full-colour RGB LED matrix display can show programmable text, directional arrows, warning messages, traffic symbols, safety information and custom patterns using steady, scrolling or push display modes. Ideal for roadside incidents, traffic control, roadworks, worksites and mobile safety applications, the Matrix Message Board provides clear visual communication to motorists, workers and pedestrians where visibility and rapid information delivery are critical.

Built for demanding automotive and commercial environments, the MMB-RGB 96×16 Matrix Message Board combines a durable aluminium housing, IP65 enclosure protection, IP67-rated front panel, wide 8–32V DC operating range and integrated CAN Bus vehicle communication. With support for SAE J1939, CANopen and configurable CAN communication, it can be integrated into emergency vehicle warning systems, traffic management systems and specialist vehicle control networks, providing a robust programmable LED vehicle message display, traffic warning display and emergency vehicle message board solution.

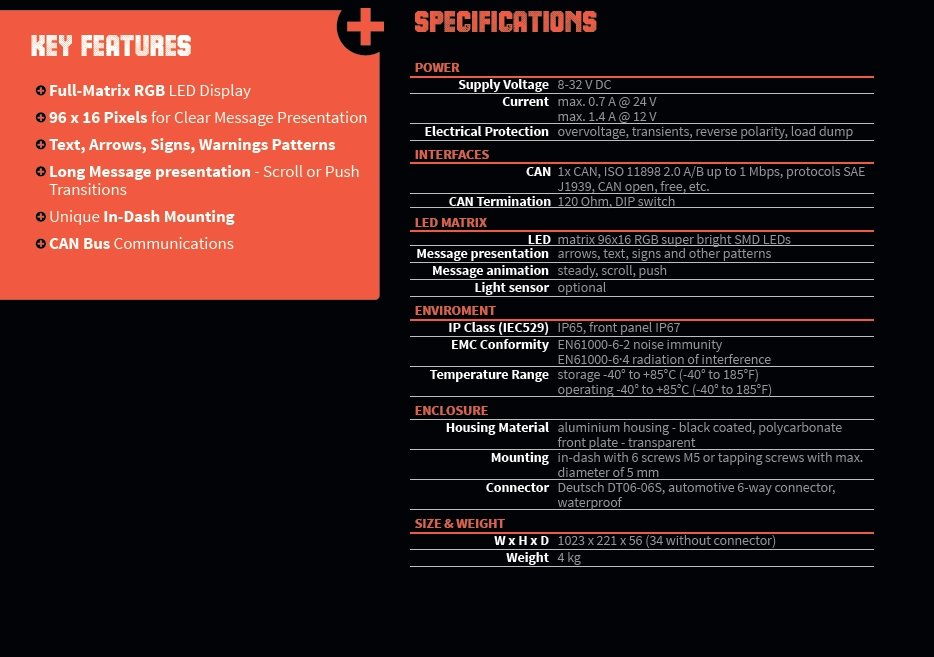

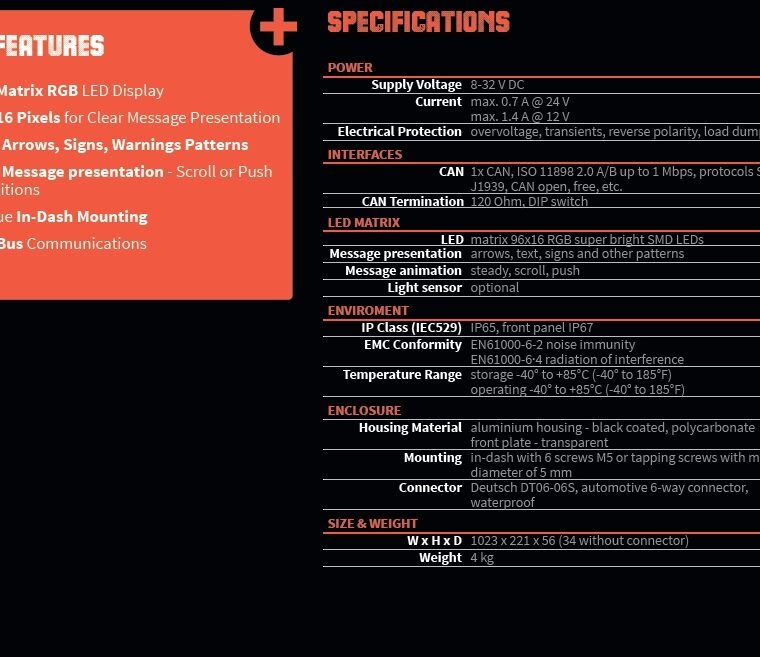

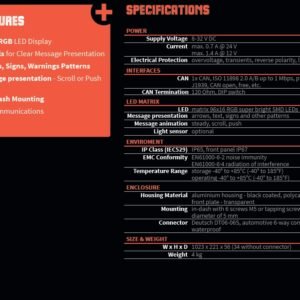

Product Specifications:

• Product: Matrix Message Board
• Model: MMB-RGB 96×16
• Display Resolution: 96 × 16 LED matrix
• LED Type: High-visibility full-colour RGB SMD LEDs
• Display Capability: Text, directional arrows, warning messages, signs, symbols and custom patterns
• Display Modes: Steady, scrolling and push transitions
• Standard Message Colour: Amber
• Custom Colours: RGB colours programmable for compatible patterns and messages
• Operating Voltage: 8–32V DC
• Maximum Current Draw: 0.7A @ 24V / 1.4A @ 12V
• Vehicle Communication: CAN Bus
• CAN Standard: ISO 11898 2.0 A/B
• CAN Communication Speed: Up to 1 Mbps
• Supported CAN Protocols: SAE J1939, CANopen and configurable CAN protocols
• CAN Termination: Switchable 120Ω termination via DIP switch
• Light Sensor: Optional
• Electrical Protection: Overvoltage, transient, reverse-polarity and load-dump protection
• Ingress Protection: IP65 enclosure / IP67 front panel
• Operating Temperature: -40°C to +85°C
• EMC: Designed to EN 61000-6-2 and EN 61000-6-4
• Housing: Black-coated aluminium
• Front Panel: Transparent polycarbonate
• Installation: Flush-mounted vehicle installation
• Mounting: 6 × M5 or suitable tapping screws
• Approximate Weight: 4 kg

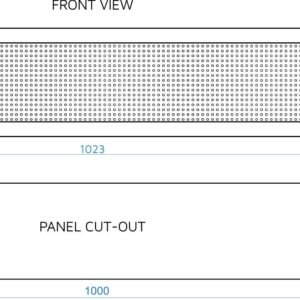

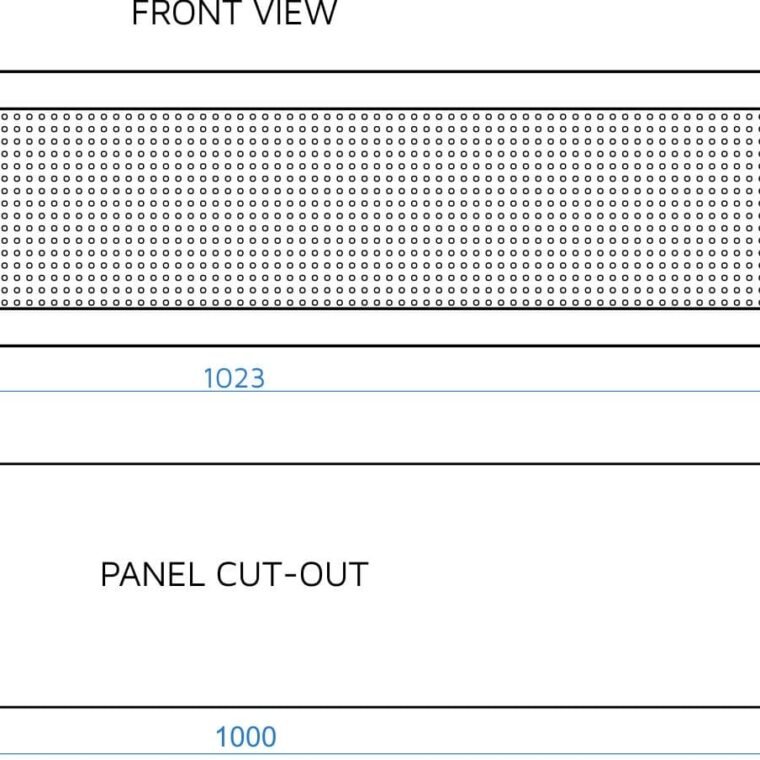

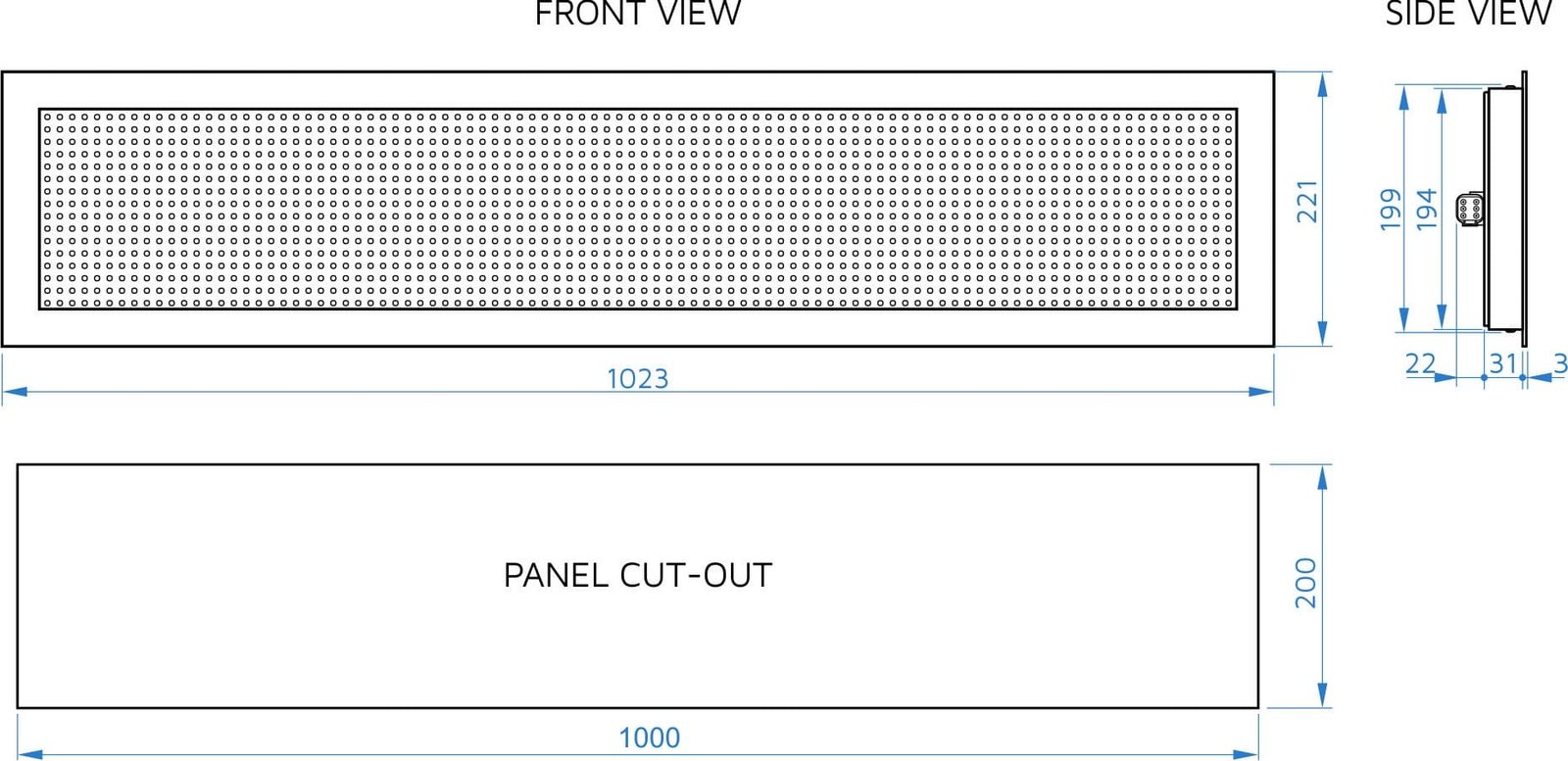

Dimensions:

• Width: 1023 mm
• Height: 221 mm
• Overall Depth: 56 mm
• Depth Excluding Connector: 34 mm

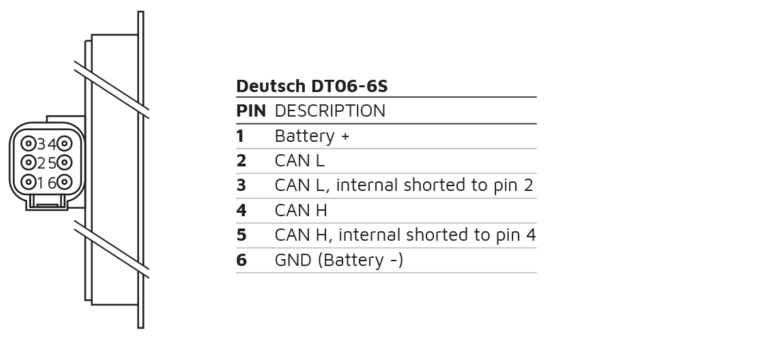

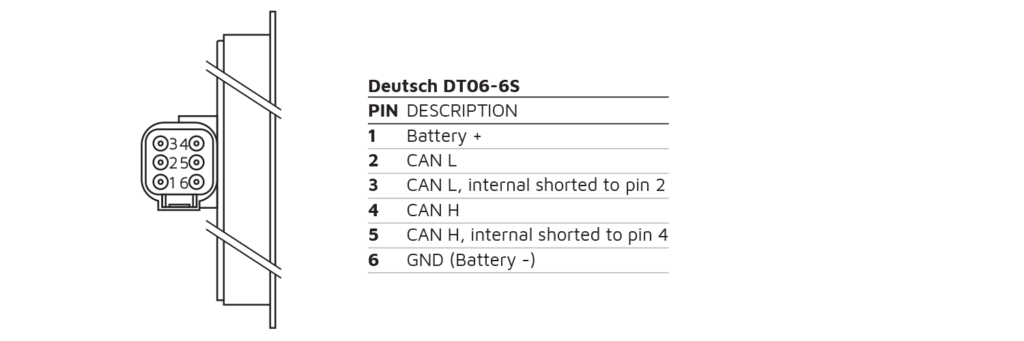

Electrical & Vehicle Connections:

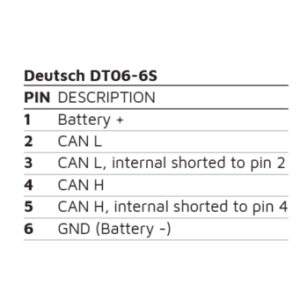

• Main Connector: Deutsch DT06-06S 6-way automotive connector
• Power Supply: 8–32V DC vehicle electrical system
• Communication: CAN Bus
• CAN Interface: ISO 11898 2.0 A/B
• CAN Speed: Up to 1 Mbps
• CAN Protocol Support: SAE J1939, CANopen and configurable CAN communication
• CAN Termination: 120Ω termination selectable by DIP switch

The Matrix Message Board MMB-RGB 96×16 is suited to emergency response vehicles, traffic management fleets, road maintenance vehicles, utility and service vehicles, construction equipment, mining vehicles, council fleets and other specialist vehicles requiring a durable, programmable and highly visible vehicle-mounted LED warning and message display.
