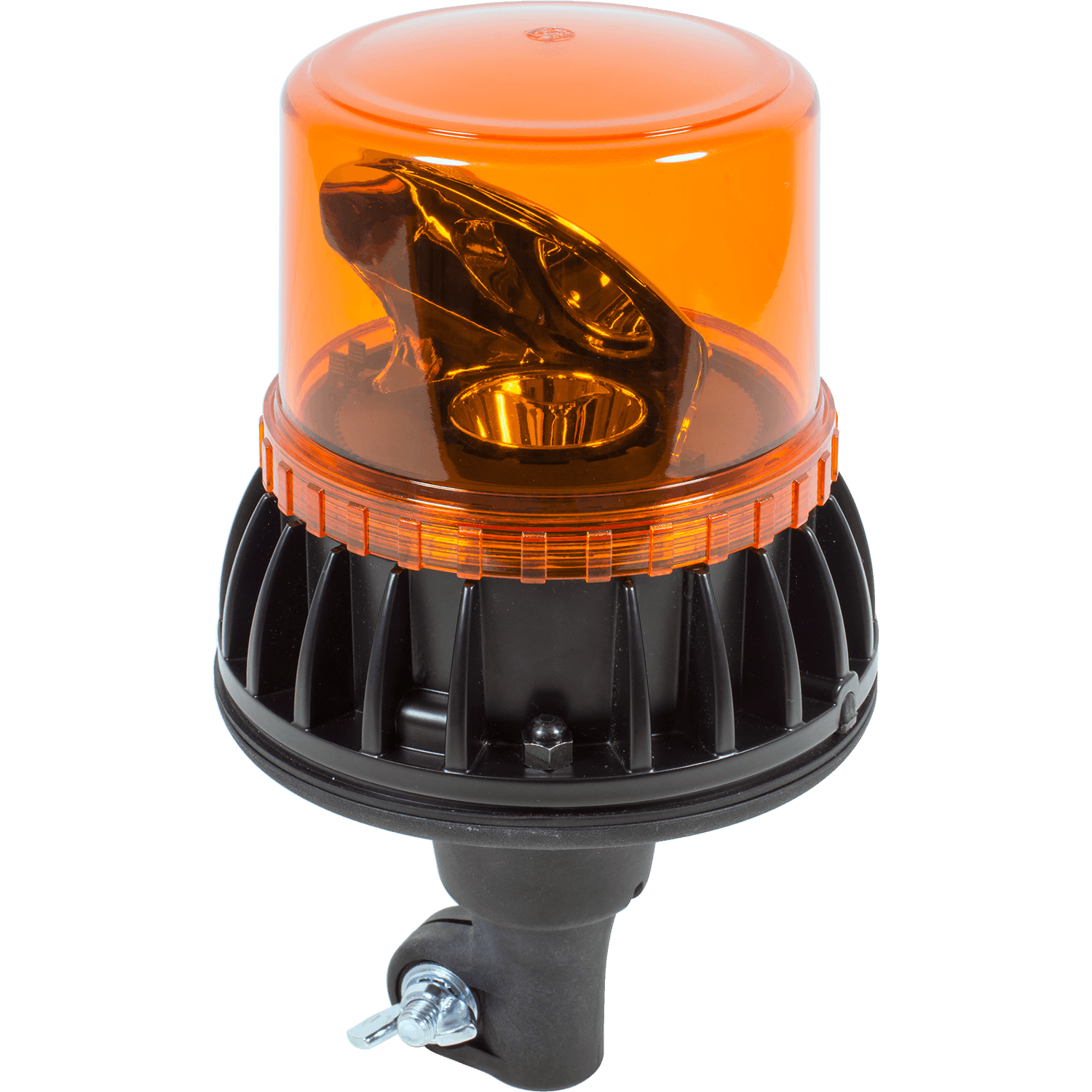

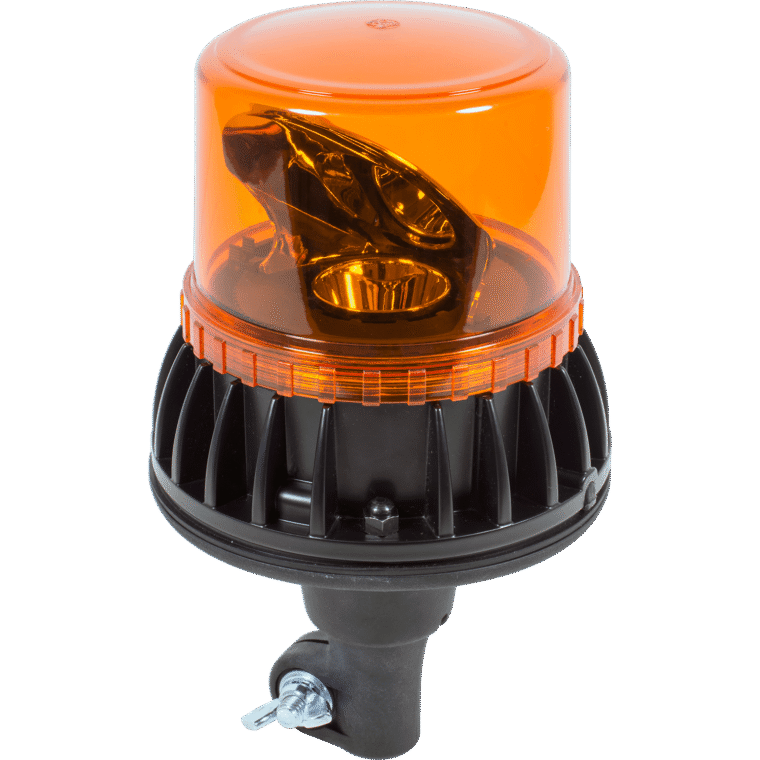

ECCO LED BEACON AMBER 10-30V AMBER LENS 142MM X 1485MM IP67 EB7630 Series

Features:

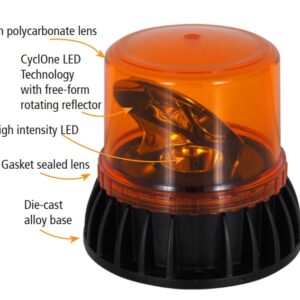

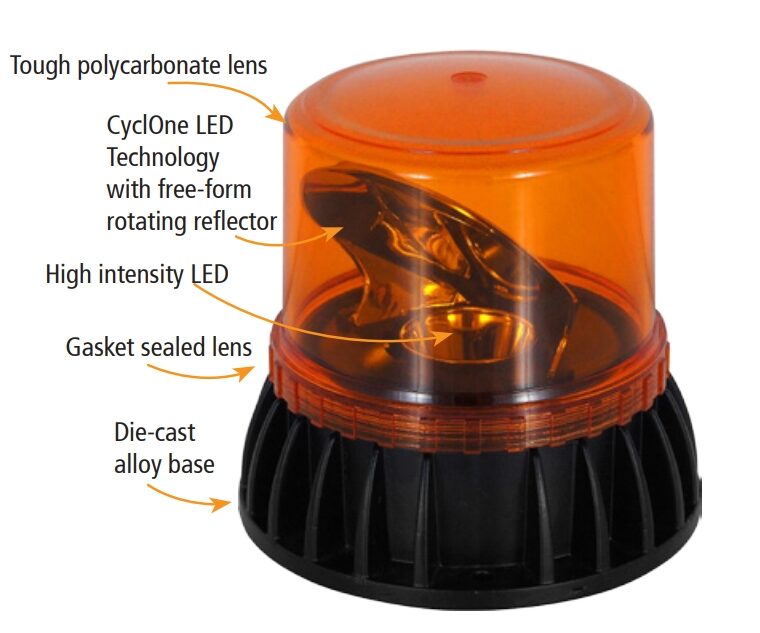

• Unique CyclOne LED Technology with high reflectivity free-form rotating reflector
• Two rotation speeds at 120rpm and 180rpm (user selectable)
• Selectable rotation direction (clockwise, anti-clockwise)
• 30% dimmable mode for night use (user selectable, bolt base only)
• Gasket sealed tough polycarbonate lens with smooth exterior
• Gel-filled heavy duty die-cast alloy base
• Bolt base; three-hole ISO footprint and rubber mounting gasket
• Bolt base version also features bottom or side entry power cable and stainless steel fittings

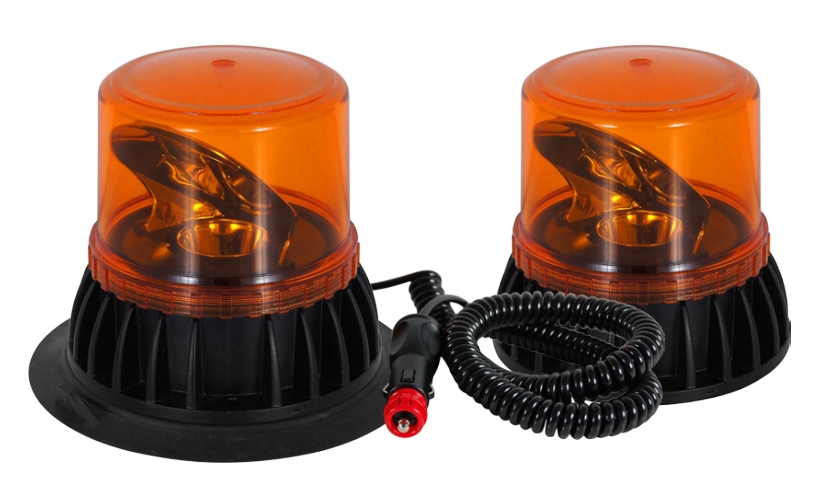

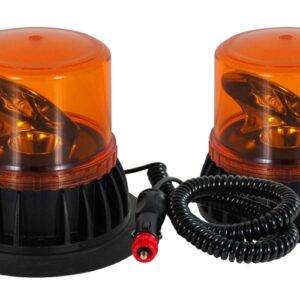

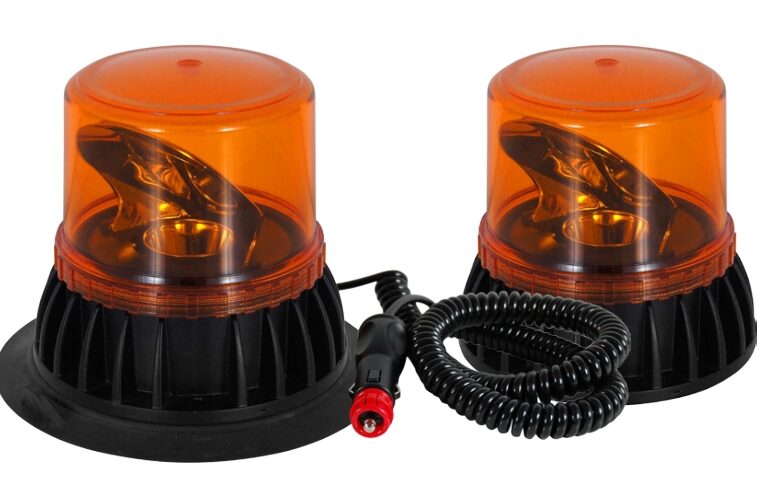

• Vacuum magnetic base version supplied with 1–3 metre curly cord, cigarette and merit plug
• SAE J845 Class 1 beacon, EMC: R10, RCM, IP67
• This beacon meets the requirements of Heavy Vehicle Regulation 2013 No.77.

Specifications:

• 10–30VDC
• Selectable rotation speed 120 or 180 RPM
• Max current draw 2.0A @ 12VDC; avg 1.3A @ 12VDC

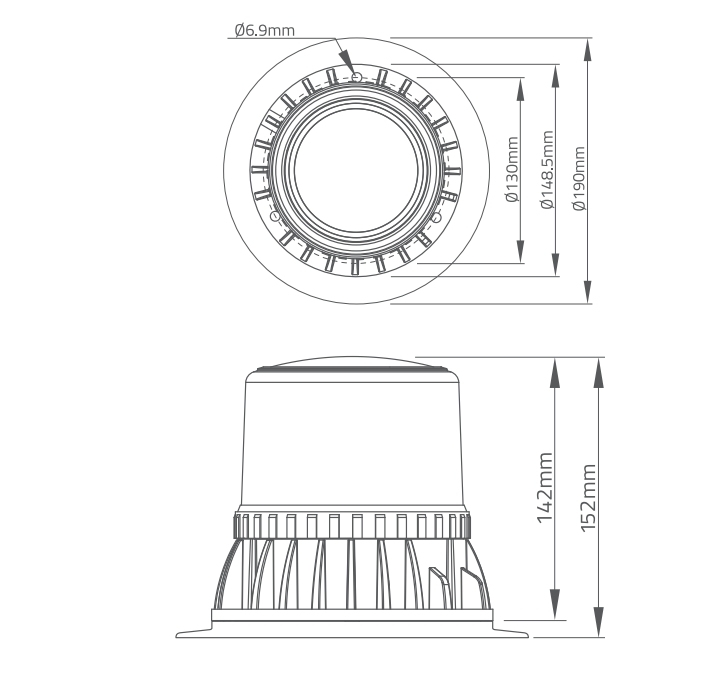

• Bolt base height 142mm x Ø 148.5mm
• Vacuum magnetic base height 152mm x Ø 190mm
• Colour –  Amber
• Flash Pattern – Two Rotation speeds 120FPM and 180FPM, Selectable rotation direction (clockwise, anti-clockwise), 30% dimmable mode for night use (user selectable, bolt base only)
• Warranty:  5 YEAR
