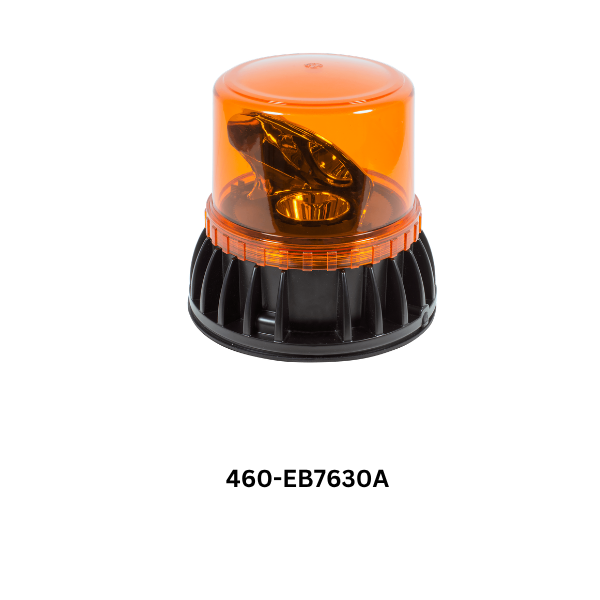

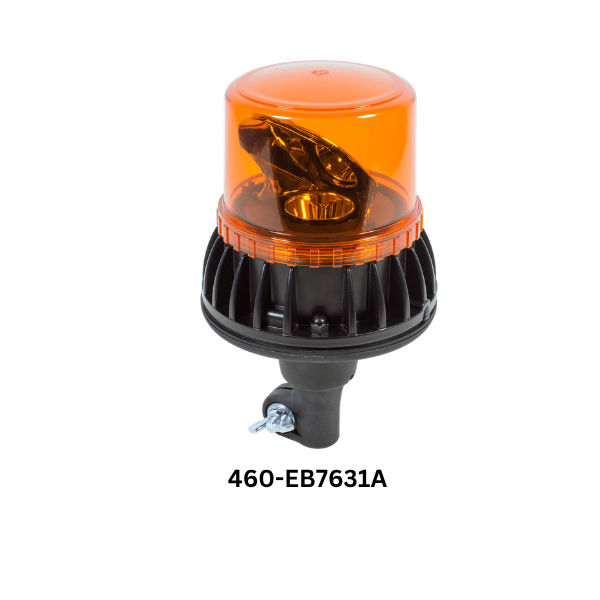

ECCO LED BEACON AMBER 10-30V AMBER LENS 142MM X 1485MM IP67 EB7630 Series

Upgrade your fleet, service vehicle or industrial machine with the ECCO LED Beacon Amber 10‑30V (EB7630 Series) — a premium high‑visibility warning beacon engineered for maximum safety, performance and durability. This IP67‑rated amber LED rotating beacon features advanced CyclOne LED technology with selectable 120 & 180 RPM rotation speeds, clockwise/anti‑clockwise direction, and a 30% dimmable night mode for optimal warning light intensity day or night. Built with a rugged die‑cast alloy base, tough polycarbonate amber lens, and heavy‑duty waterproof sealing, it delivers 360° warning visibility and reliable long‑life LED warning light performance on 10‑30V DC systems, perfect for emergency vehicles, tow trucks, construction trucks, utility fleets, traffic control vehicles and civil work equipment. Fully compliant with SAE J845 Class 1, RCM, R10 and IP67 safety standards, and backed by a 5‑year warranty, the EB7630 Series outshines standard amber rotating beacons and LED warning lights — the ultimate choice for high‑intensity, maintenance‑free vehicle safety signalling.

Features:

• Unique CyclOne LED Technology with high reflectivity free-form rotating reflector
• Two rotation speeds at 120rpm and 180rpm (user selectable)
• Selectable rotation direction (clockwise, anti-clockwise)
• 30% dimmable mode for night use (user selectable, bolt base only)
• Gasket sealed tough polycarbonate lens with smooth exterior
• Gel-filled heavy duty die-cast alloy base
• Bolt base; three-hole ISO footprint and rubber mounting gasket
• Bolt base version also features bottom or side entry power cable and stainless steel fittings

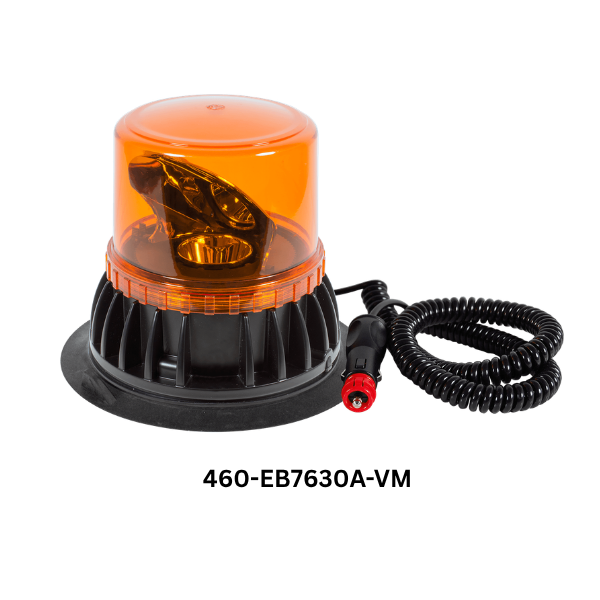

• Vacuum magnetic base version supplied with 1–3 metre curly cord, cigarette and merit plug
• SAE J845 Class 1 beacon, EMC: R10, RCM, IP67
• This beacon meets the requirements of Heavy Vehicle Regulation 2013 No.77.

Specifications:

• 10–30VDC
• Selectable rotation speed 120 or 180 RPM
• Max current draw 2.0A @ 12VDC; avg 1.3A @ 12VDC
• Bolt base height 142mm x Ø 148.5mm
• Vacuum magnetic base height 152mm x Ø 190mm
• Colour –  Amber
• Flash Pattern – Two Rotation speeds 120FPM and 180FPM, Selectable rotation direction (clockwise, anti-clockwise), 30% dimmable mode for night use (user selectable, bolt base only)
• Warranty:  5 YEAR
