CODE 3 PURSUIT SERIES RGB SLIC CONTROLLER

IMPORTANT NOTE:
Please note that this controller featuring different coloured RGB backlit buttons must be pre-programmed by Code 3 prior to delivery.

Colours and programming cannot be modified by the end user via the DNA Software, so any requirements must be specified at the time of ordering.

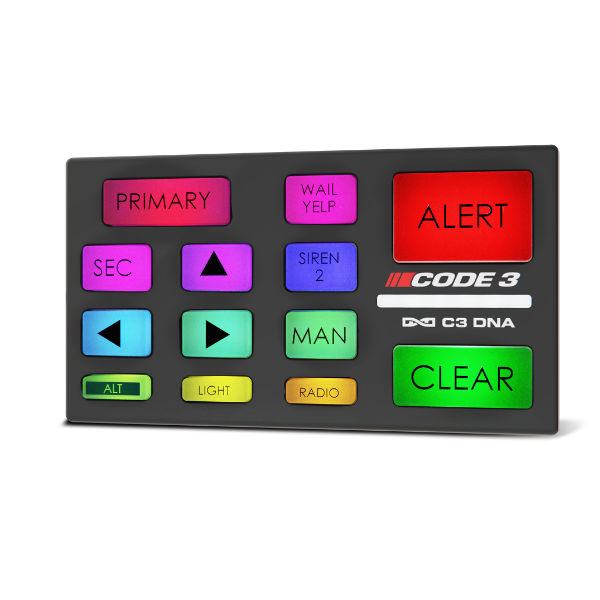

Bring emergency vehicle siren and warning light control together with the Code 3 SLIC Controller, a compact, programmable keypad designed for the Code 3 DNA system. The Siren and Lighting Integrated Controller features 13 backlit silicone buttons with customisable symbols, multicolour illumination and function indicators, giving operators an intuitive interface for compatible vehicle warning equipment. Configure button functions and colours to suit your installation, with dynamic visual feedback that helps operators identify selected warning and auxiliary functions.

The SLIC controller combines a compact footprint with self-adhesive mounting and a 540 mm cable for vehicle fit-outs. Within the Code 3 Distributed Network Architecture, compatible sirens, lightbars, directional warning lights and message displays operate as one coordinated warning system without a dedicated master control unit. Contact Australian Warning Systems to discuss Code 3 SLIC controller supply, system compatibility and installation for emergency services and specialist fleet applications across Australia.

Key features:

• Programmable control: Configure button functions to suit vehicle equipment and operational requirements.
• Multicolour buttons: Set backlighting colours and button symbols for your installation. (programmed by Code 3)
• Dynamic function feedback: Configure warning functions to flash matching colours, or auxiliary functions to change colour according to brightness or integration with warning signals.
• Durable silicone keypad: Designed for reliable operation with an intuitive button layout.
• Compact mounting: A slim controller with self-adhesive mounting for installations where space is limited.
• Integrated Code 3 DNA operation: Control compatible equipment within a configurable, distributed vehicle warning system.

Certifications:
RCM, ECE R10

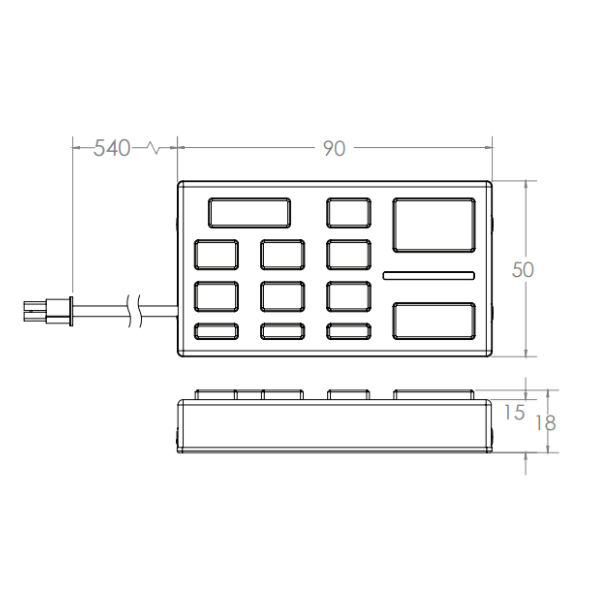

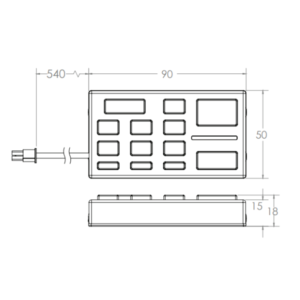

Dimensions:
90mm (w) x 50mm (h) x 18mm (d)

Additional Information:
Slimline touch-pad controller
Self adhesive mounting
Code 3 lightbar compatibility

Please Note:
This controller is to suit the Pursuit Series Siren Amplifier only.
It is not compatible with the Hazard 1000 Series or M3 Series Sirens.

The SLIC is a controller for compatible Code 3 DNA equipment. Available functions depend on the connected devices and system configuration. Confirm the required controller variant, compatible components and programming requirements with Australian Warning Systems when specifying your installation.
