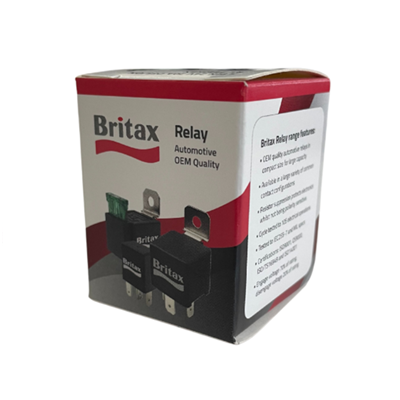

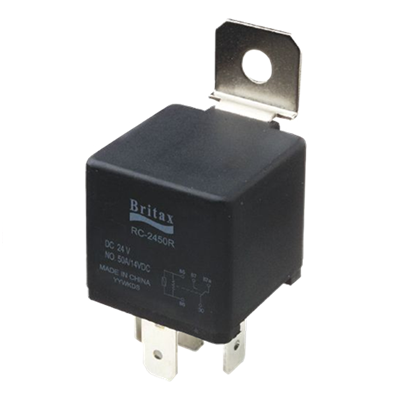

BRITAX RELAY – 24 VOLT

Britax 24V Relay is a robust, industrial‑grade switching solution engineered for demanding 24 V electrical systems in commercial vehicles, trucks, buses, machinery and warning systems. Featuring a SPST 4‑pin design with built‑in resistor protection that suppresses voltage spikes and protects sensitive electronics, this compact relay delivers reliable 40 A switching performance with durable silver contacts, copper braid load conductor and 6.3 mm terminals – all in an IP‑rated rugged housing for long‑term operation. OEM‑level quality standards and tried‑and‑true reliability make it the go‑to choice for automotive electrical applications and aftermarket system upgrades.

Approvals:
CE, UL, CSA, TUV

Dimensions:
26.5mm (d) 24.5mm (h) 26.5mm (w)

Additional Information:
24 volt
40 amps
6.3mm terminals
SPST, resistor protected
1.6w coil
OEM quality with silver contacts
Copper braid load conductor
