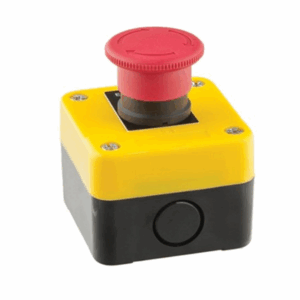

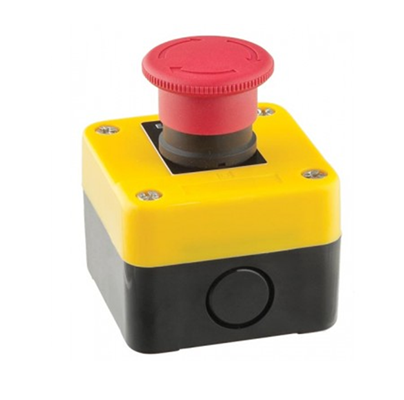

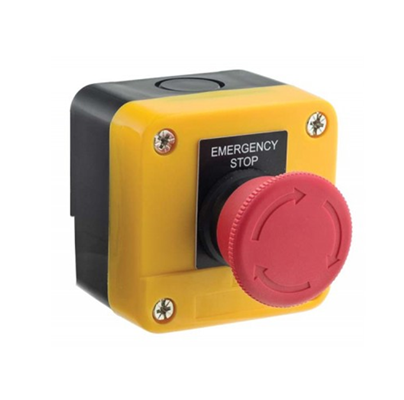

BA SERIES E-STOP – LATCHING

Ba Series e‑Stop – Latching is a rugged, compact emergency stop switch engineered for industrial safety and control applications. Featuring a reliable latching turn‑to‑release mechanism that locks out machinery until manually reset, IP65 environmental sealing for dust and moisture protection, and a durable polycarbonate body with silver alloy contacts, it delivers dependable performance in harsh environments. Designed for 6–36 V systems and supplied with both 1 N/O and 1 N/C contact blocks, this E‑Stop mountable safety switch is ideal for equipment safety shutdowns, machine safety circuits, and emergency stop requirements where quick, positive mechanical cut‑off and high visibility are critical for operator protection and regulatory compliance. Buy online today for unbeatable value and onsite safety assurance.

Approvals:
IP65

Dimensions:
67mm (h) x 67mm (w) x 50mm (d)

Additional Information:
Latching – turn to release
Mounts to base
Silver Alloy Contacts
Polycarbonate body
Environmentally sealed – IP65
6V – 36V
Polymer button with Polycarbonate Body

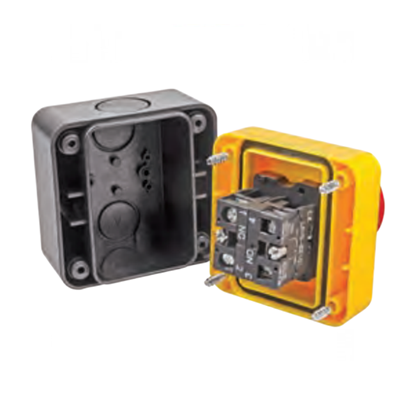

Supplied with 1 X N/O and 1 X N/C Contact Block
