ACOUSTIC VEHICLE ALERTING SYSTEM (AVAS) – EV & HYBRID PEDESTRIAN WARNING SOUNDER

The Brigade QVS Acoustic Vehicle Alerting System (AVAS) is a professional electric vehicle warning sounder, EV pedestrian warning system and quiet vehicle alerting system designed to make electric and hybrid vehicles easier for pedestrians, cyclists and other vulnerable road users to detect at low speeds. Ideal for electric trucks, buses, vans, commercial vehicles, government fleets, construction, mining, logistics, transport, depots and specialist vehicle applications, the QVS combines Brigade’s patented bbs-tek® White Sound® multi-frequency technology with tonal sounds to create a directional and easily locatable vehicle warning within the hazard zone. Pitch and volume increase with vehicle speed to mimic the audible characteristics of a conventional combustion-engine vehicle, providing an effective EV pedestrian alert, electric vehicle noise emitter, low-speed vehicle warning system and quiet vehicle safety solution. The QVS is UNECE R138 compliant and E-Marked to UNECE R10.

The Problem With Silence

Electric and hybrid vehicles can be extremely quiet at low speeds, making an approaching vehicle more difficult for pedestrians, cyclists, visually impaired people and other vulnerable road users to hear. This can present additional risk in car parks, loading areas, warehouses, depots, worksites, transport hubs, shared zones and busy urban environments where vehicles and people operate in close proximity. An AVAS Acoustic Vehicle Alerting System generates an identifiable external vehicle sound at low speeds, helping provide road users with additional warning of the vehicle’s presence and direction of travel.

Specification Overview

• Vehicle Voltage: 12–24V DC
• Operating Speed: Below 20 mph / approximately 32 km/h
• Speaker Dimensions: 120 × 135 × 120 mm
• ECU Dimensions: 93 × 26 × 185 mm
• Speaker Protection: IP68
• ECU Protection: IP30
• Maximum Current: 0.1A
• Operating Temperature: -30°C to +70°C
• Mechanical Vibration: 10G
• Warranty: 2 Years

Features

• AVAS Acoustic Vehicle Alerting System for electric and hybrid vehicles
• Warns pedestrians and other vulnerable road users of an approaching quiet vehicle
• Patented Brigade bbs-tek® White Sound® technology
• Combines multi-frequency broadband and tonal sounds
• Directional and locatable sound focused within the vehicle hazard zone
• Front speaker system for forward vehicle movement
• Pitch and volume increase automatically with vehicle speed
• Mimics the changing audible characteristics of an internal combustion engine
• Operational below speeds of 20 mph
• Front sounder operates when ignition is activated
• Sounder silenced when parking brake is applied
• Uses vehicle speed signal input
• Alternative installation methods available for vehicles without a tachograph
• Suitable for EVs, hybrid vehicles, electric trucks, buses, vans and commercial fleets

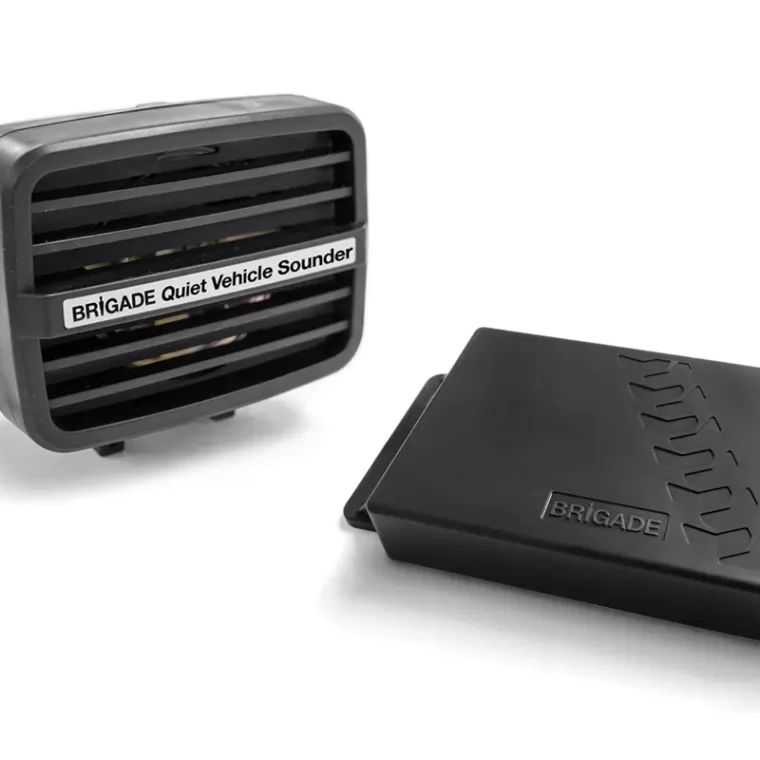

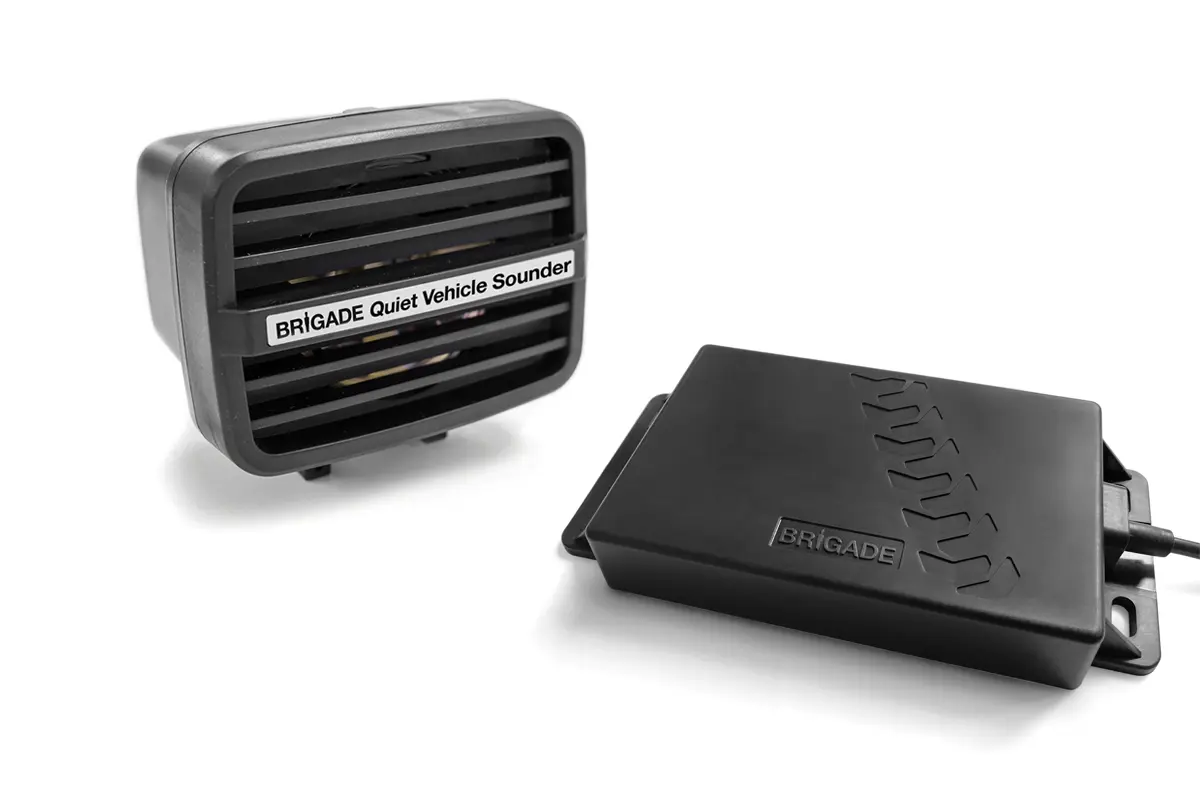

Contents

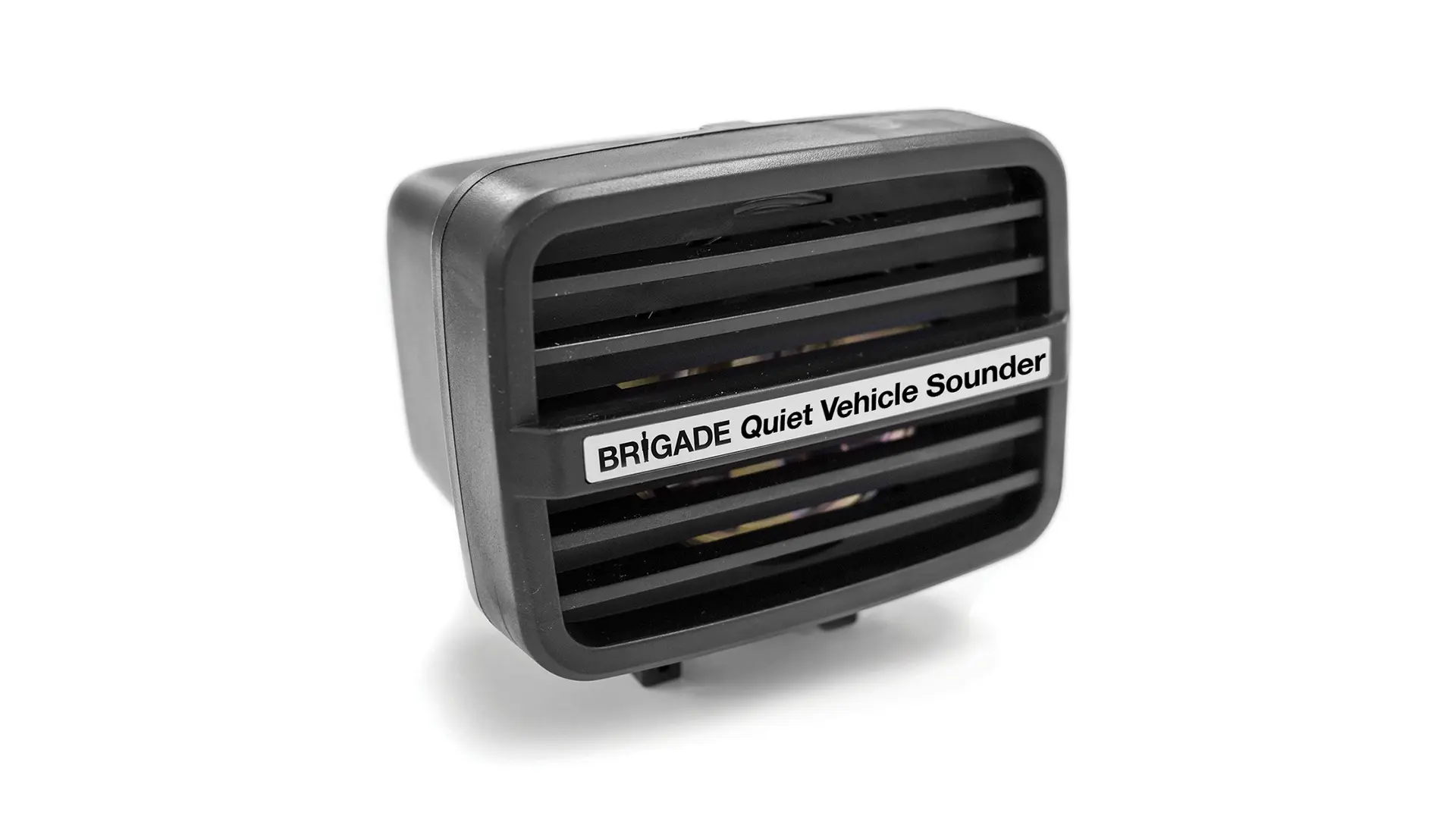

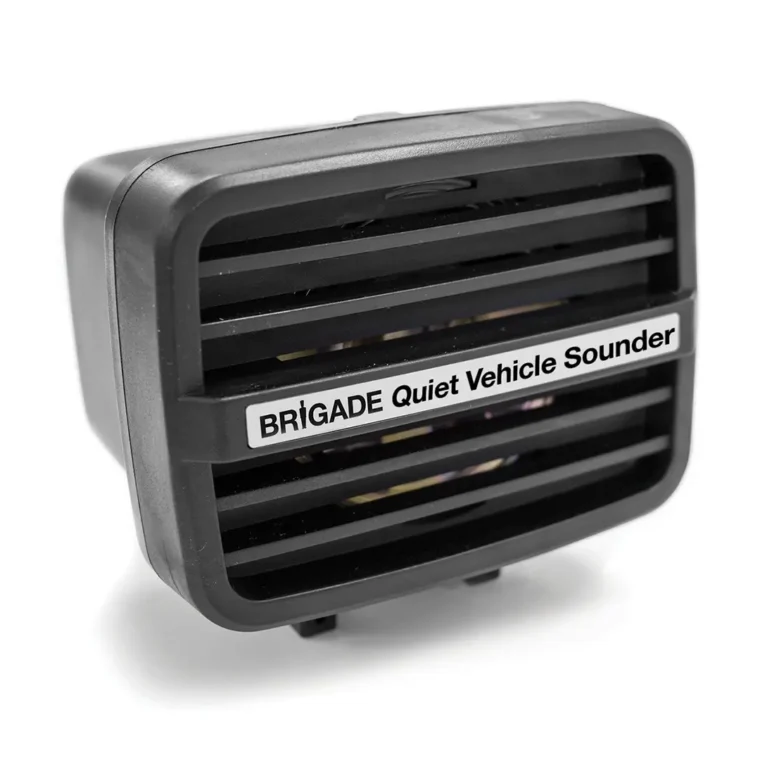

• 1 × QVS-SPK-01 Speaker
• 1 × QVS-000-ECU Electronic Control Unit

Power

• Supply Voltage: 12–24V DC
• Maximum Current Draw: 0.1A
• Low-current electrical design suitable for commercial vehicle applications

Durability & Standards

• Speaker: IP68 rated
• ECU: IP30 rated
• Mechanical Vibration Resistance: 10G
• Operating Temperature: -30°C to +70°C
• UNECE R138 compliant
• E-Marked – UNECE R10 compliant
• CE marked
• FCC approved
• IC marked
• 49 CFR Part 571 and 585 compliant
• 2-year warranty

Brigade states that the QVS helps achieve UNECE R138 compliance for the vehicle. Final vehicle compliance is dependent on the complete vehicle configuration and installation.

Benefits

• Improved Pedestrian Awareness – Helps pedestrians and vulnerable road users detect an approaching electric or hybrid vehicle.
• Safer Low-Speed Vehicle Operation – Provides an additional audible warning where quiet vehicles can otherwise be difficult to hear.
• Directional & Locatable Sound – Helps road users identify where the vehicle is and the direction it is travelling.
• Speed-Responsive Warning – Pitch and volume automatically increase as vehicle speed rises.
• Reduced Noise Nuisance – Brigade’s bbs-tek® White Sound® technology is concentrated around the hazard area and dissipates quickly.
• Commercial & Fleet Ready – Suitable for electric trucks, buses, vans, construction vehicles, logistics fleets and specialist electric vehicles.
• Low Power Consumption – Maximum current draw of only 0.1A.
• Rugged External Speaker – IP68 protection for demanding vehicle operating environments.

Ideal Applications

Electric Vehicles | Hybrid Vehicles | Electric Trucks | Electric Buses | Commercial EV Fleets | Government Vehicles | Public Transport | Mining | Construction | Logistics | Warehousing | Airports | Depots | Waste & Refuse Vehicles | Utility Fleets | Specialist Vehicles | EV Conversions

For fleets, vehicle builders and operators looking for an effective AVAS system, electric vehicle pedestrian warning sounder, EV external sound generator, quiet vehicle warning system or low-speed electric vehicle safety solution, the Brigade QVS AVAS provides a robust, directional and speed-responsive warning solution for modern electric and hybrid vehicles.
