CODE 3 M5 MESSAGE DISPLAY

The CODE 3 M5 Matrix LED Variable Message Display sets a new standard for vehicle and external messaging. Its slim, fully weather-sealed IP67 housing and ultra-bright high-visibility characters allow clear readability from up to 100m. Built with advanced surface-mount LEDs, solid-state design and custom optics, it delivers exceptional brightness and larger text height for superior daytime and long-distance visibility. The system includes an OLED touchscreen controller with a removable micro SD card, 2GB onboard storage for up to 99 messages, and intuitive PC software for quick editing and setup. Designed for reliable performance in harsh Australian conditions, the M5 operates on 10–30VDC and is ECE R10 and C-Tick approved. Compact, rugged and user-friendly, it remains the only display in its class offering enhanced text height and optics that maximise clarity, making it ideal for any vehicle or application requiring clear, dependable visual communication.

Approvals:
ECE R10, ROHS, C-TICK, IP67

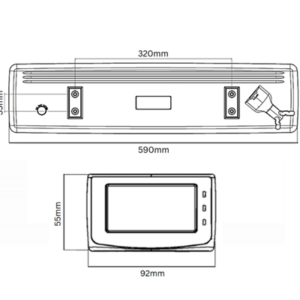

Dimensions:
Message Board: 590mm (w) x 145mm (h) x 40mm (d)
Controller: 92mm (w) x 55mm (h) x 15mm (d)

LED Message Board:
Australian Made Product
Easily readable from 100 meters
Environmentally sealed – IP67 (display only)
10-30 Volt operation
288x high intensity LEDs
Available in amber or red LEDs
Innovative optical design to improve legibility and reduce sunshine washout

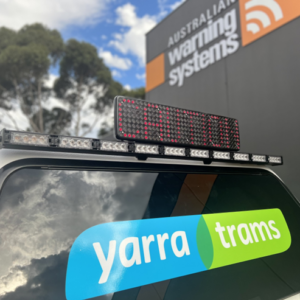

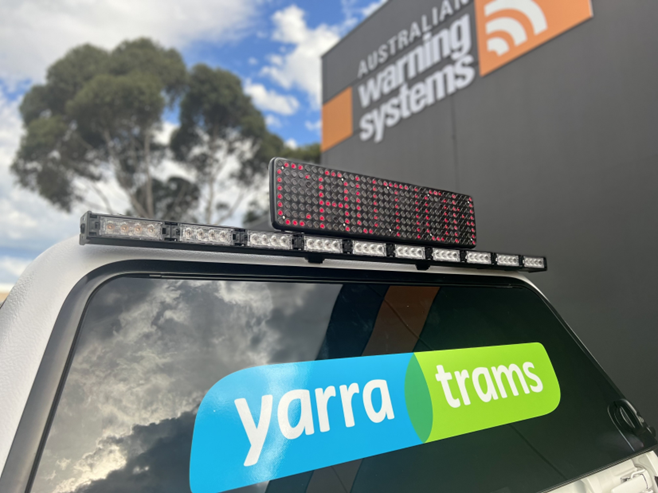

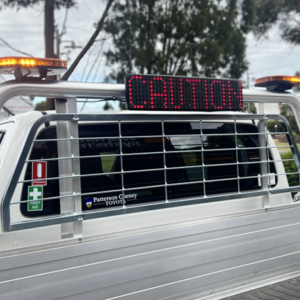

Mount on rear decks, roof racks, lightbars, canopies, etc..
1-year warranty

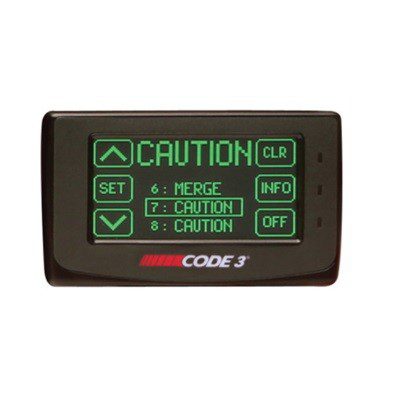

O-LED Touch Screen Controller:
Australian Made Product
PC message programmer – Program up to 99 messages
MicroSD message storage and firmware update
Adhesive tape mounting or optional swivel-mount kit
1-year warranty
