TIR OPTIC LED BEACON

Approvals:
SAE J845 CLASS I, CE, R10, IP67, CAL. TITLE 13,
ROHS, CISPR 25 LVL 3 (RADIATED EMISSIONS)

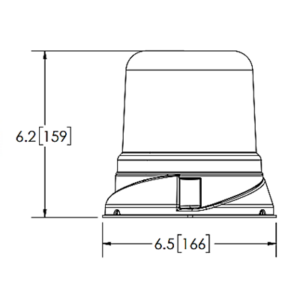

Mounting and Dimensions:

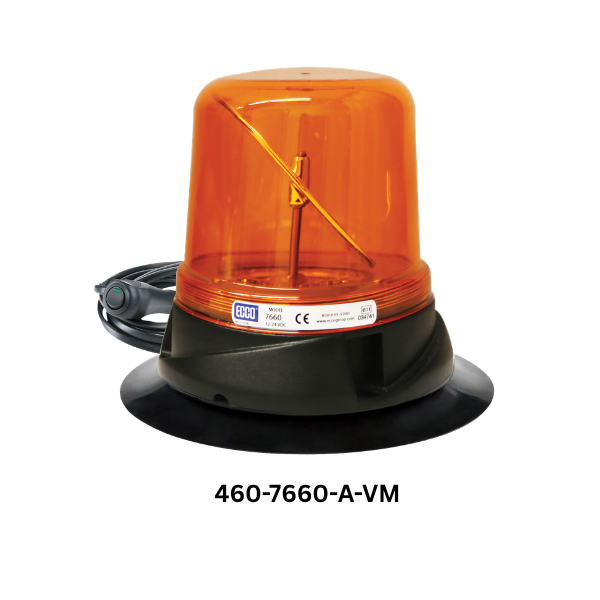

Fixed and Magnetic Options Available
Fixed: 159mm (H) X 166mm (D)
Magnetic: 187mm (H) X 203mm (D)

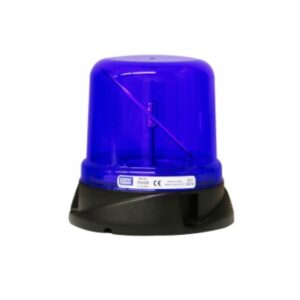

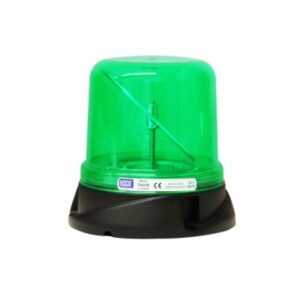

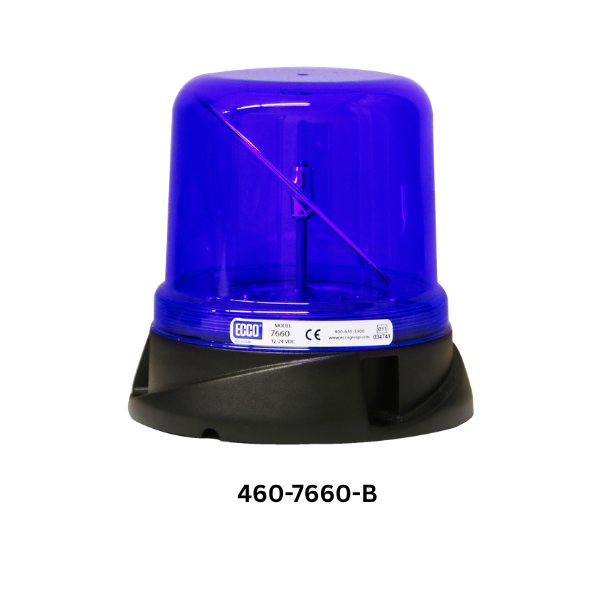

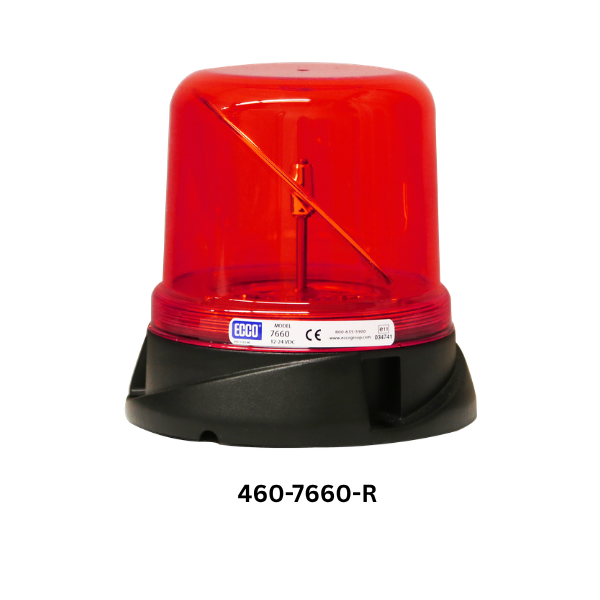

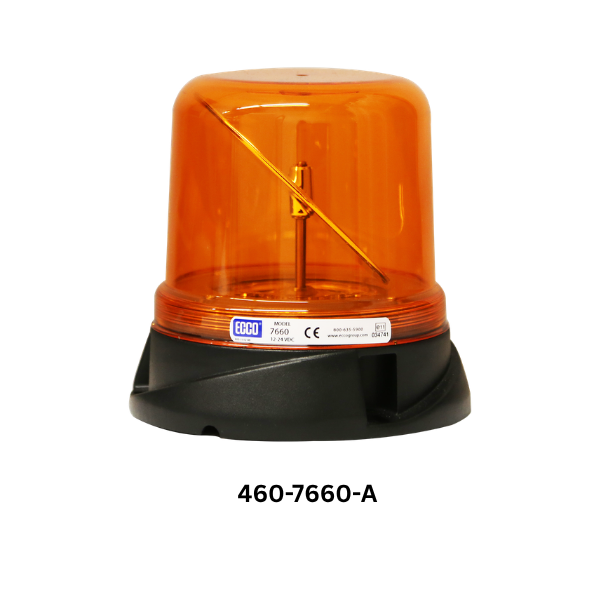

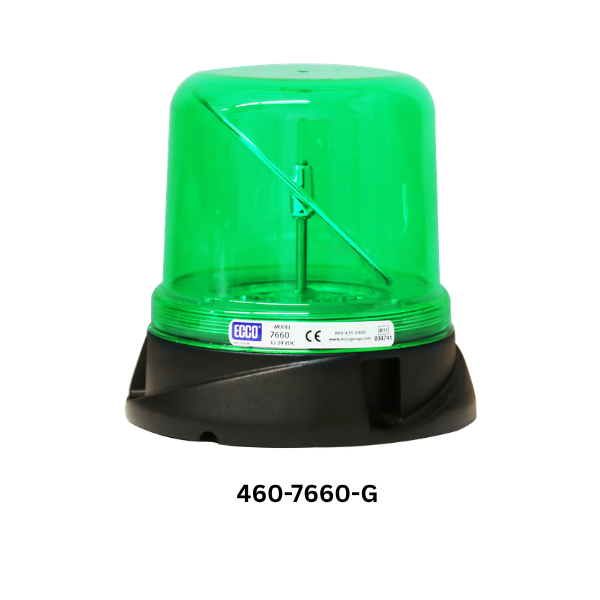

Lens Colours Available:
Amber, Clear, Red, Blue, Green

Additional Information:
Eight x 3 watt LED’s provide unrivalled intensity
TIR optic reflector produce an exceptionally bright beam
Unique “Hybrid” drive system uses no belts, brushes or gears!
Polycarbonate lens with Die cast aluminium base
Coated against corrosion
Designed for vibration resistance and heat dissipation
Hermetically sealed to IP67 for added protection
12-24 volt (2.1 amp)
5 Year Warranty
