Description
All minebars equipped with rear facing ADR Approved LED combination lamps-
Stop, Tail, Indicator & Reverse.
Mounting and Dimensions:
Excluding Worklights: 1275mm (L) X 165mm (D) x 124mm (H)
Including Worklights: 1275mm (L) X 165mm (D) x 177mm (H)
SAE Class I LED Beacon (460-1030)
18 x 3 watt LEDs
12 flash patterns
Environmentally sealed – IP67

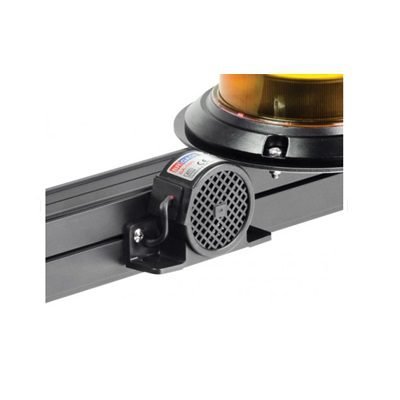

Reverse Squawker (600-BBS092)
Big Sound, Small Noise ………. shh…shh…shh
92dB
Solid state electronics sealed in epoxy resin – IP68
LED Worklights
Lumen output – 1000lm
Colour temperature – 5000K
Environmentally sealed cast alloy body – IP68
122mm (H) X 93mm (W) X 41mm (D)
Crossbar
Black anodised aluminium
